High quality blue fins water dispenser evaporator

  • >=50 Pieces
    $4.00
Model Number:
blue fins water dispenser evaporator
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Type:
Evaporator
Application:
Refrigeration Parts, water dispenser evaporator
Certification:
TUV
Product name:
blue fins water dispenser evaporator
Material:
Copper or aluminum
Tube material:
Copper tube
Fin material:
Hydrophilic Foil
Shape size:
240x100x20mm(m)
Model:
7-1x5x108
Form:
U-tube type
Weight:
0.14(kg)
Brand:
TianYang
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month water dispenser evaporator
Packaging & Delivery
Packaging Details
Packaging Details:Standard export foam board + wooden box packing
Delivery Detail: 15 days after received deposit
water dispenser evaporator
Port
Qingdao or Tianjin
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Video Description
Product Description
Product details
Name
 blue fins water dispenser evaporator
Shape size
240x100x20mm(m)
Application
water dispenser
Model
7-1x5x108
Brand
Tian Yang
Weight
0.14(kg)
Form
U-tube type
Custom processing
Yes
Product Show

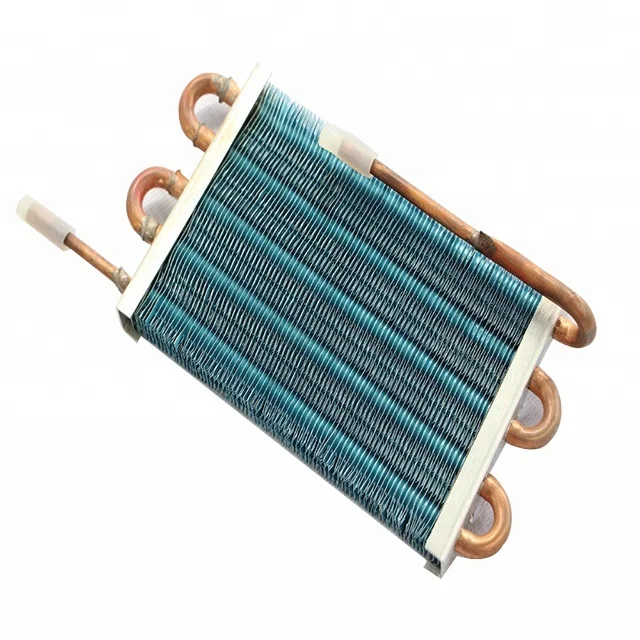

blue fins water dispenser evaporator

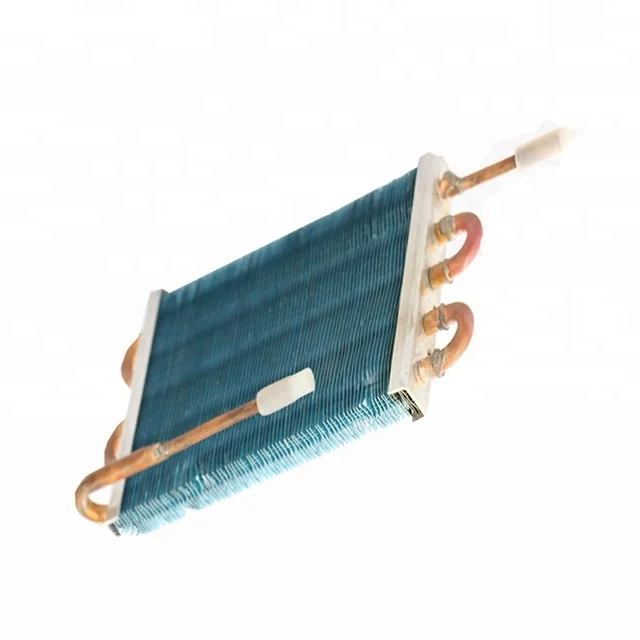

blue fins water dispenser evaporator

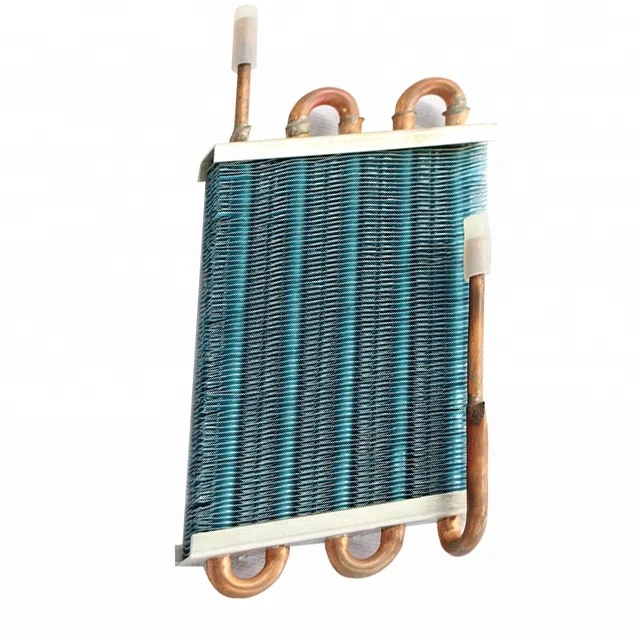

blue fins water dispenser evaporator

Product Mold Table
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
