Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: TianYang
  • Model Number: Air-cooled condenser for refrigeration equipment
  • Type: Condenser
  • Application: Refrigeration Parts
  • Certification: TUV
  • Product name: Air-cooled condenser
  • Material: Aluminum
  • Fin material: Hydrophilic Foil
  • Tube material: Copper Aluminum Bundy Tube
  • Color: Gray
  • Model: Customer's Drawing
  • Brand: TianYang
  • Refrigerant: R-134a
  • Name: Air-cooled condenser

Packaging & Delivery

Packaging Details Packaging Details: Standard export carton
Delivery Detail: 15days after received deposit

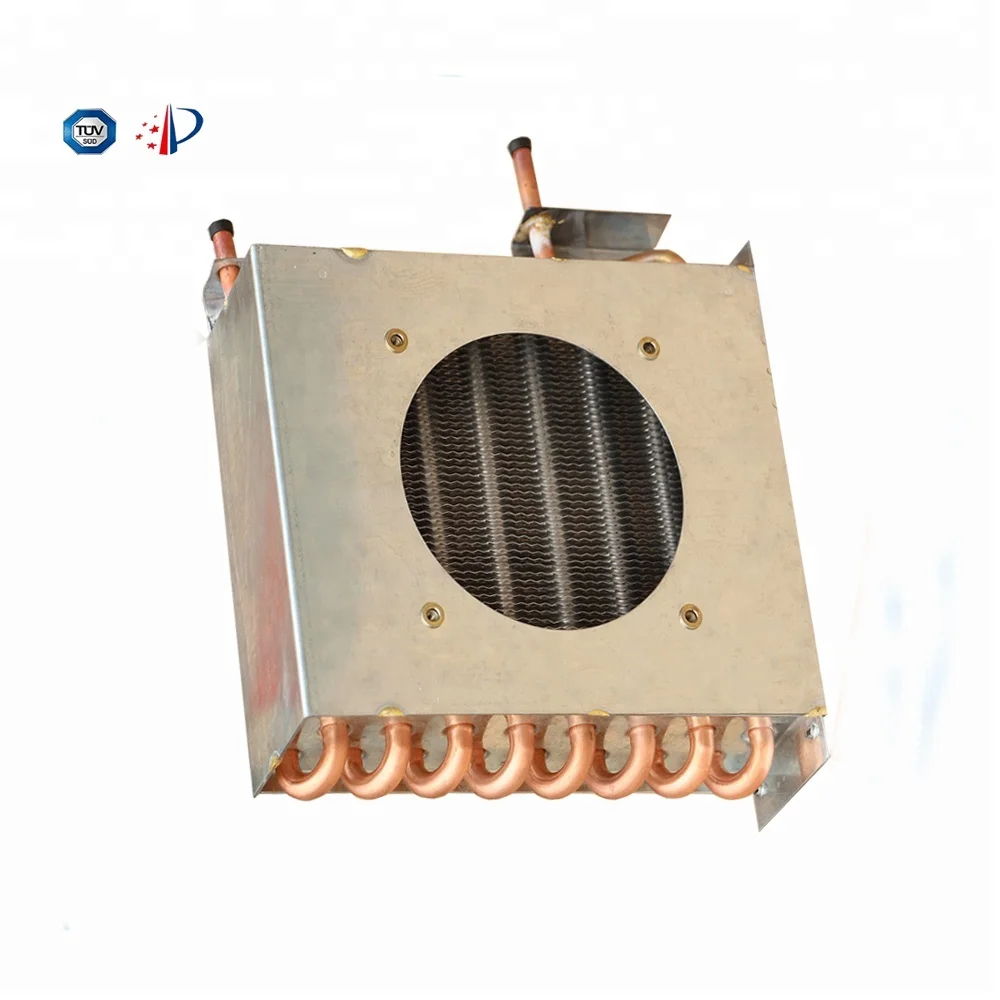

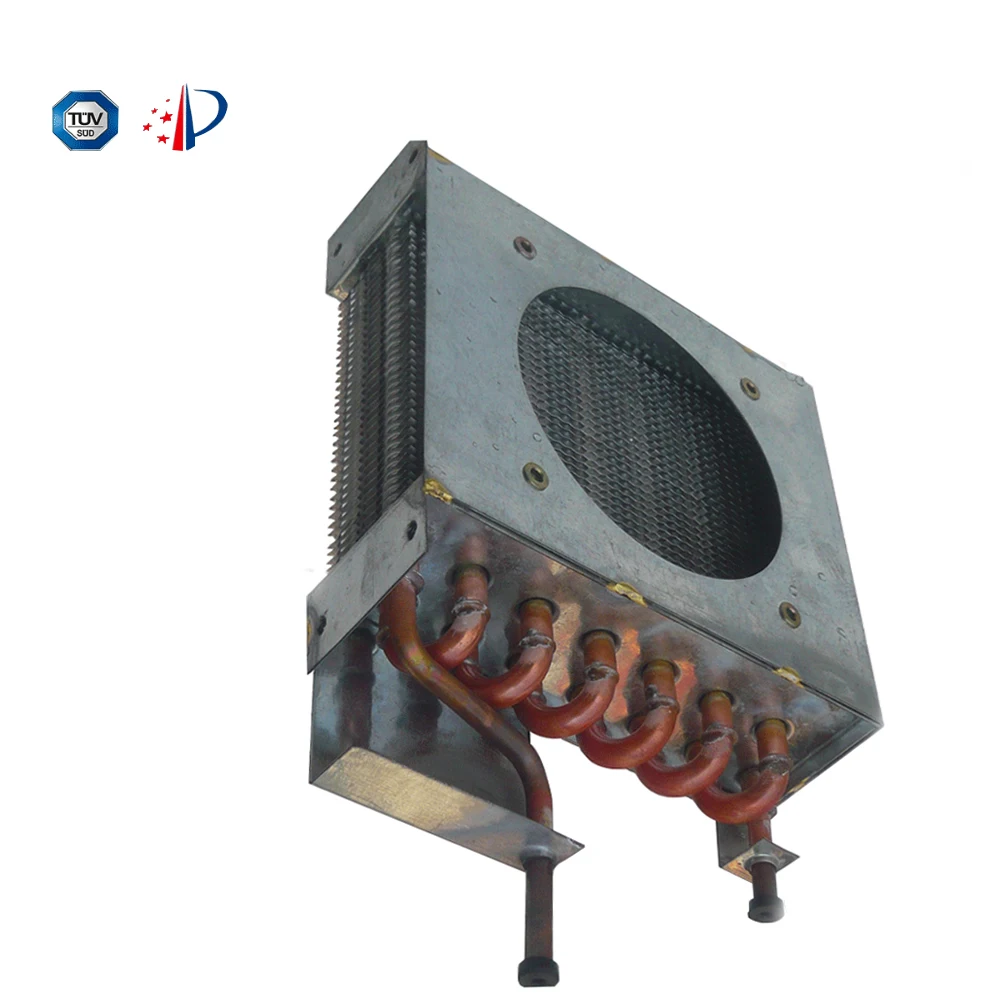

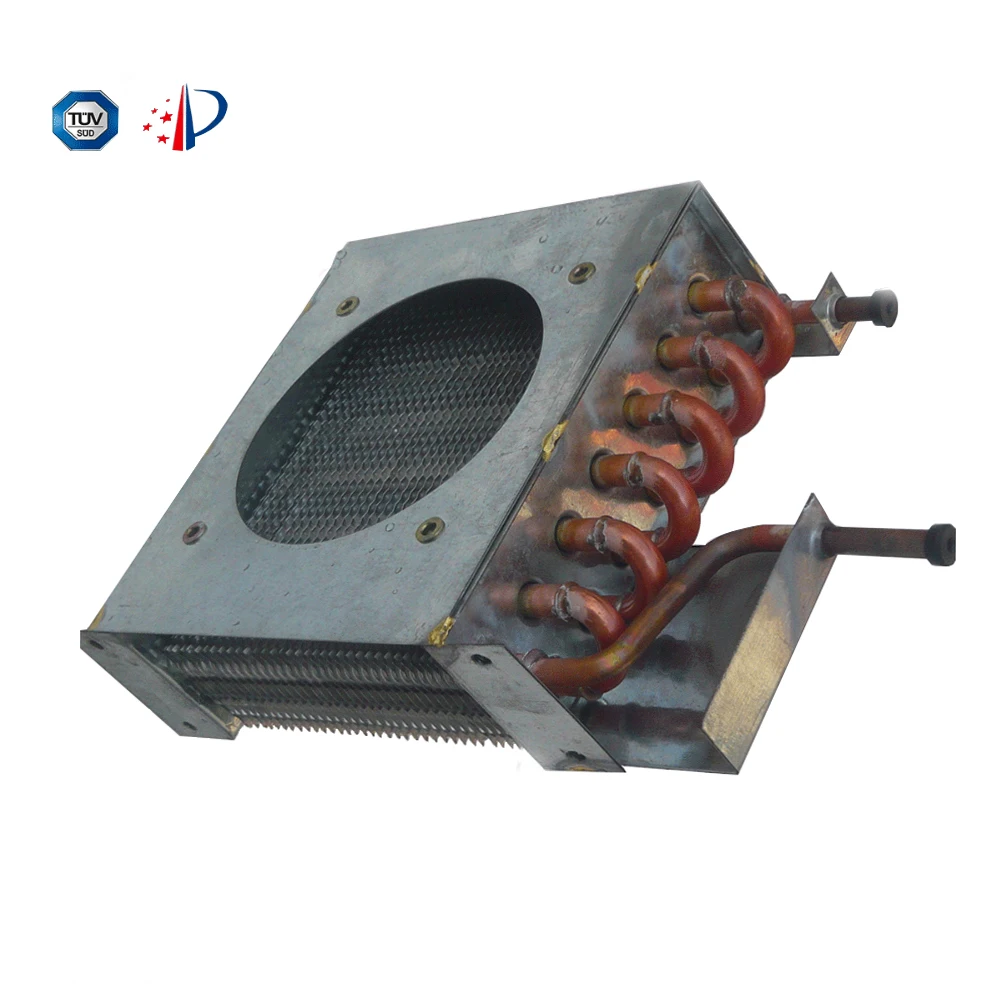

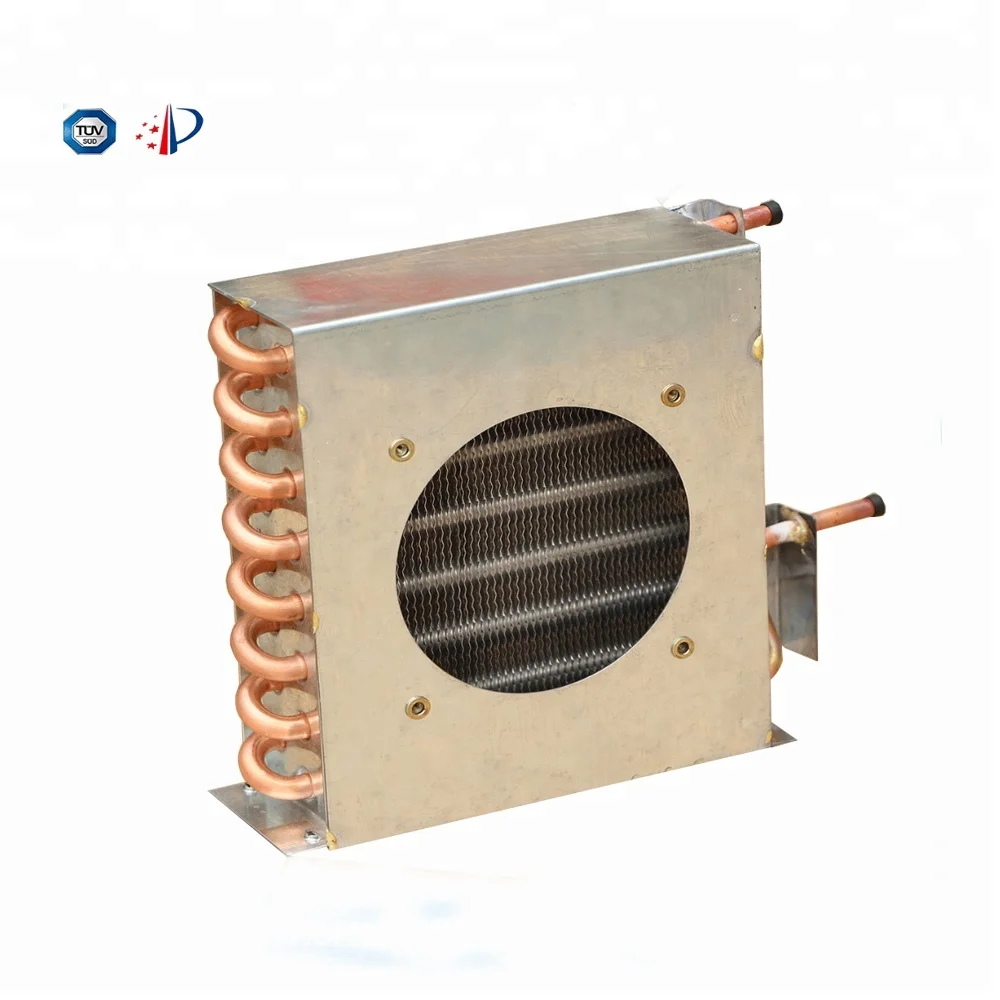

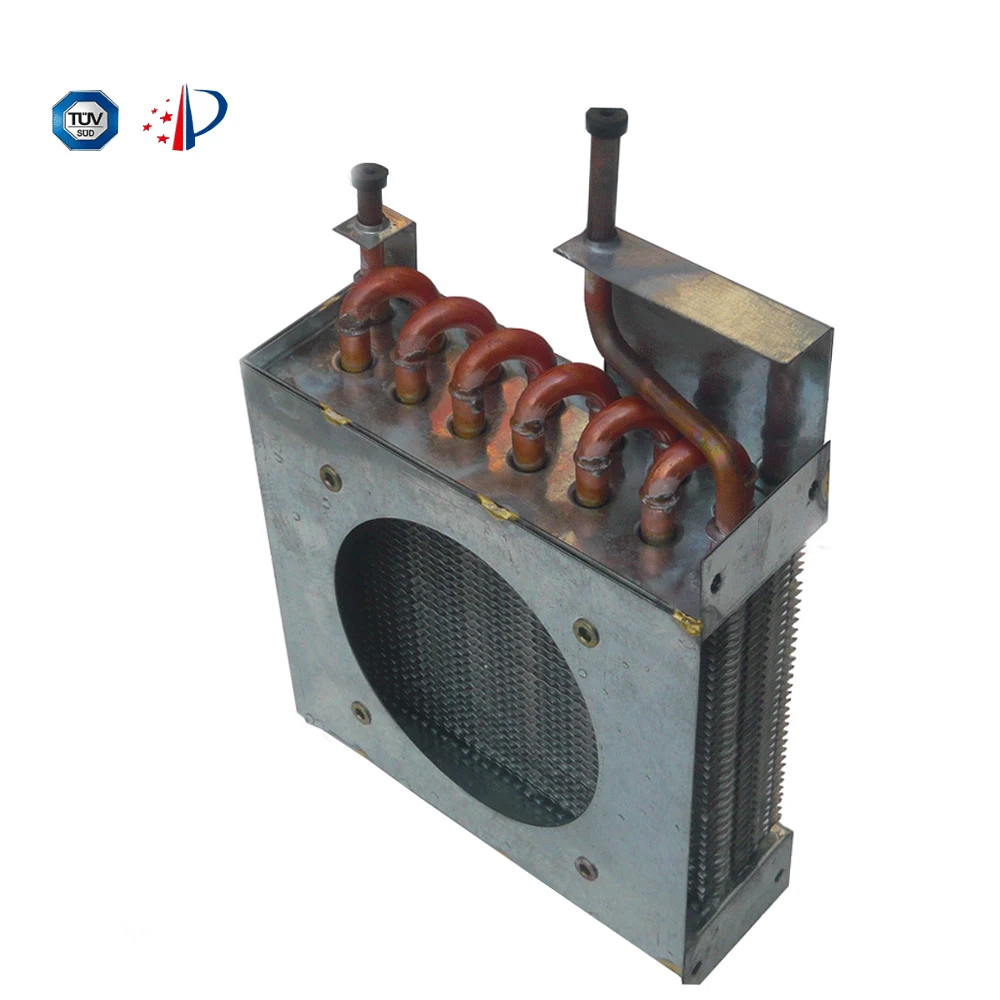

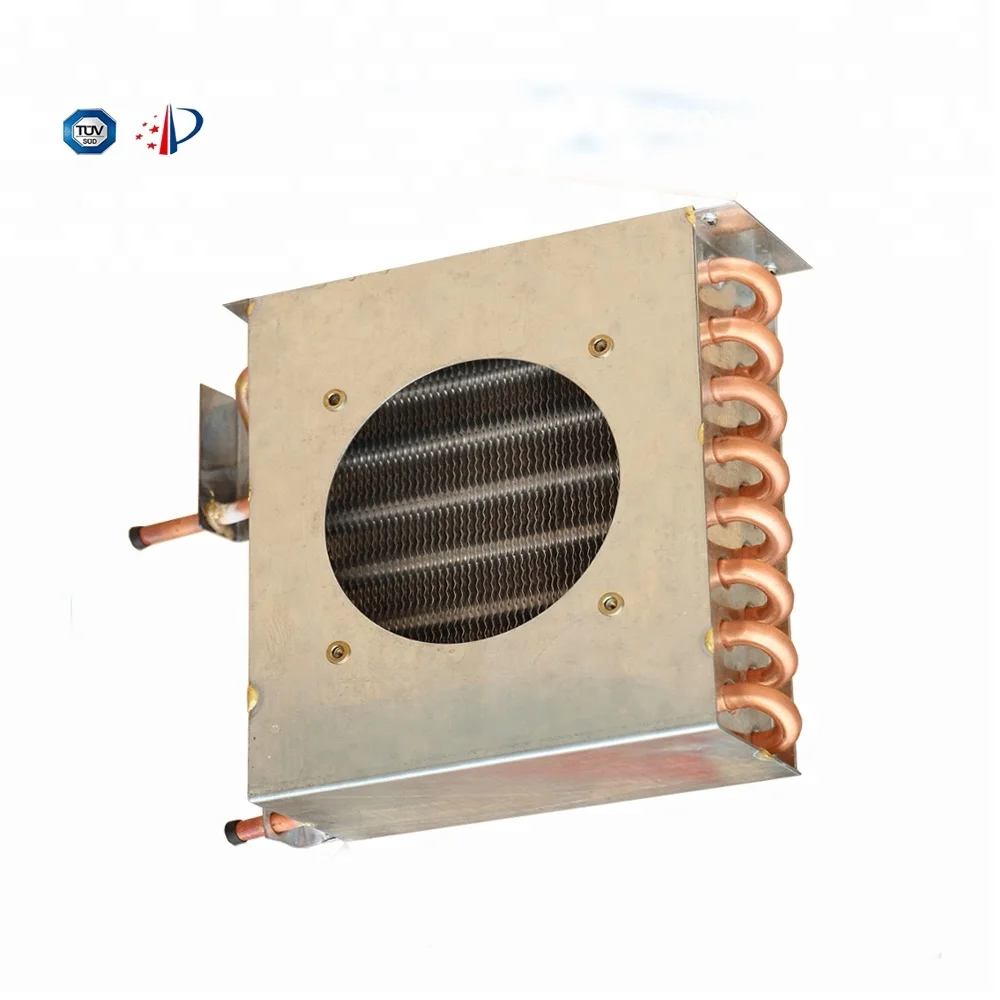

Air-cooled condenser
Delivery Time Shipped in 15 days after payment
Product Description

Air-cooled condenser for refrigeration equipment


Our main products including Fin-tube heat exchanger ,condenser, evaporator ,and radiator, which are widely used in air conditioner, refrigeration products such as refrigerator, freezer ,display cabinet, water dispenser and conditioner in transportation equipments .

1) We can supply it according to your drawings or samples, and we can also design according to your needs.

2) We have exported to many countries such as Pakistan, United States, New Zealand, etc.

3) Design terms: We have a professional technical team.

4) Professional Factory: We are a professional manufacturer of condensers, evaporators, heat exchangers and radiators for over 20 years, with competitive prices, and quality manufacturers.

5) Big productivity: 5,000 per month.

6) Respond quickly to your needs: We will reply within 24 hours after receiving your letter. If you have an emergency, please call us.

7) The most efficient service, best quality and good reputation.


8)Special-purpose products, please contact me

9)
Prices are for reference only!


Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
Products Show
Our Company

City

Our city

Factory

Our  factory

Our employees

Employees working on site

Factory Interior

Comfortable work environment

Mechanical equipment

The continuous operation of machinery

Packing&Trnansport

Wooden box

Use this wooden box features: beautiful appearance, sturdiness and durability, export-specific, size can be produced according to customer requirements.

Carton

The use of this carton features: beautiful appearance, sturdiness and durability, export-specific, size can be produced according to customer requirements.

Mandatory Sign

 Such as "up", "wet", "carefully handled", "lift", "center of gravity", and "hands-on" when handling operations and storage and storage requirements and precautions, " Anti-heat, "frost", "heap height", commonly used indicators as shown

Air Transport


Ocean Shipping


Ground Transportation


Our Service

1. We will respond to your question within 24 hours.

2.Our quality control checks into raw materials, semi-finished and finished products.

3. has experienced technical staff. Including senior engineers and technical personnel more than 20 people, has many years of experience.

4. Our products can be customized. According to provide samples, the size, drawings, etc. to manufacture products to customer needs.

5. very competitive prices can improve the quality and improve the delivery date of the product.

6. We are professional manufacturer, has 18 years of manufacturing experience.
