Household appliances fin condenser

FOB Reference Price:Get Latest Price
US $13-18 / Pieces | 100 Piece/Pieces Household appliance condenser (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Model Number:
harvester copper tube condenser
Structure:
Tube Heat Exchanger
Liquid Flow Rate:
According to customization
Maximum Working Pressure:
According to customization
Voltage:
According to customization
Weight:
1000(kg)
Dimension(L*W*H):
According to customization
Power(W):
According to customization
Certification:
CCC, CE, CSA, UL, TUV
Warranty:
One Year
After-sales Service Provided:
No overseas service provided
Product Name:
Household appliance condenser
Material:
Copper
Tube material:
Copper tube
Fin material:
Hydrophilic foil
Color:
Grey
Brand:
TianYang
Model:
Customer's Drawing
Application:
harvester
Custom processing:
Yes
Name:
Household appliance condenser
SupplyAbility
SupplyAbility:
180508 Piece/Pieces per Month Household appliance condenser
Packaging & Delivery
Packaging Details
Packaging Details: Standard export carton
Delivery Detail: 15days after received deposit
Household appliance condenser
Port
Qingdao or Tina jin
Lead Time :
Shipped in 15 days after payment
Product Description

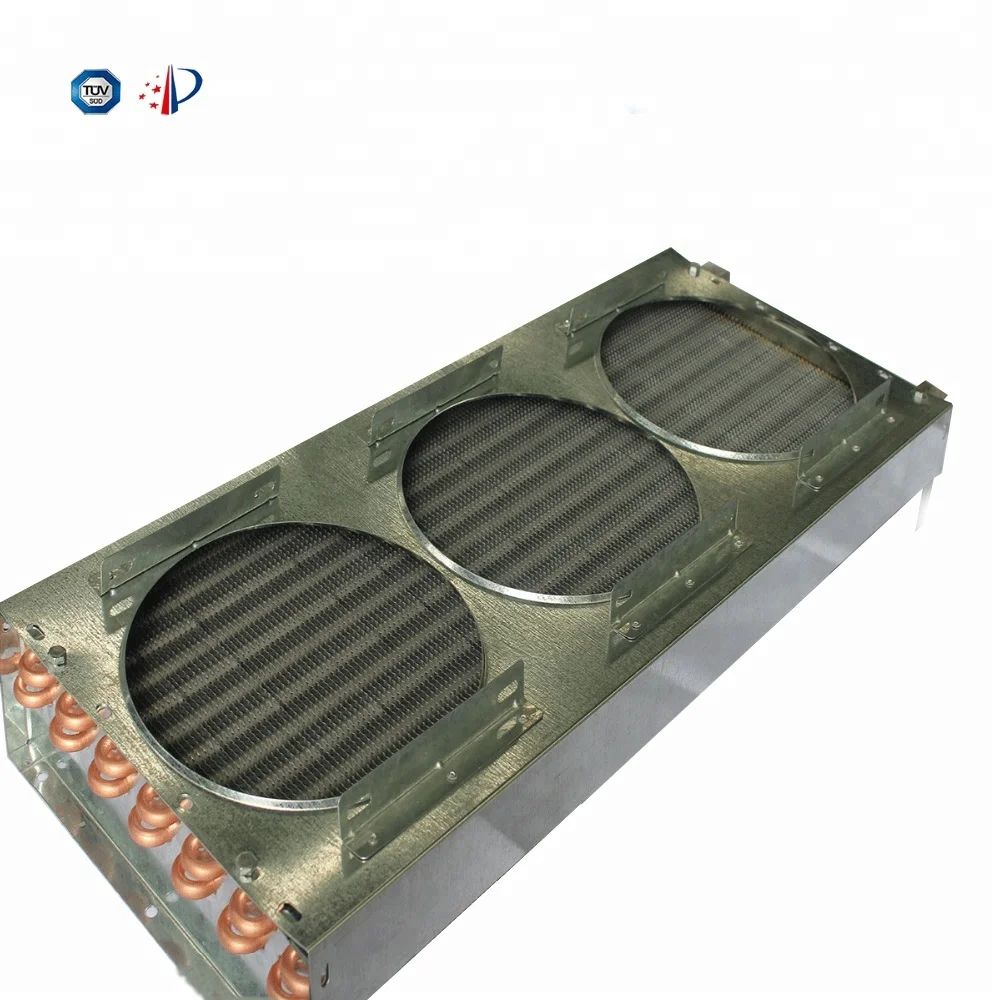

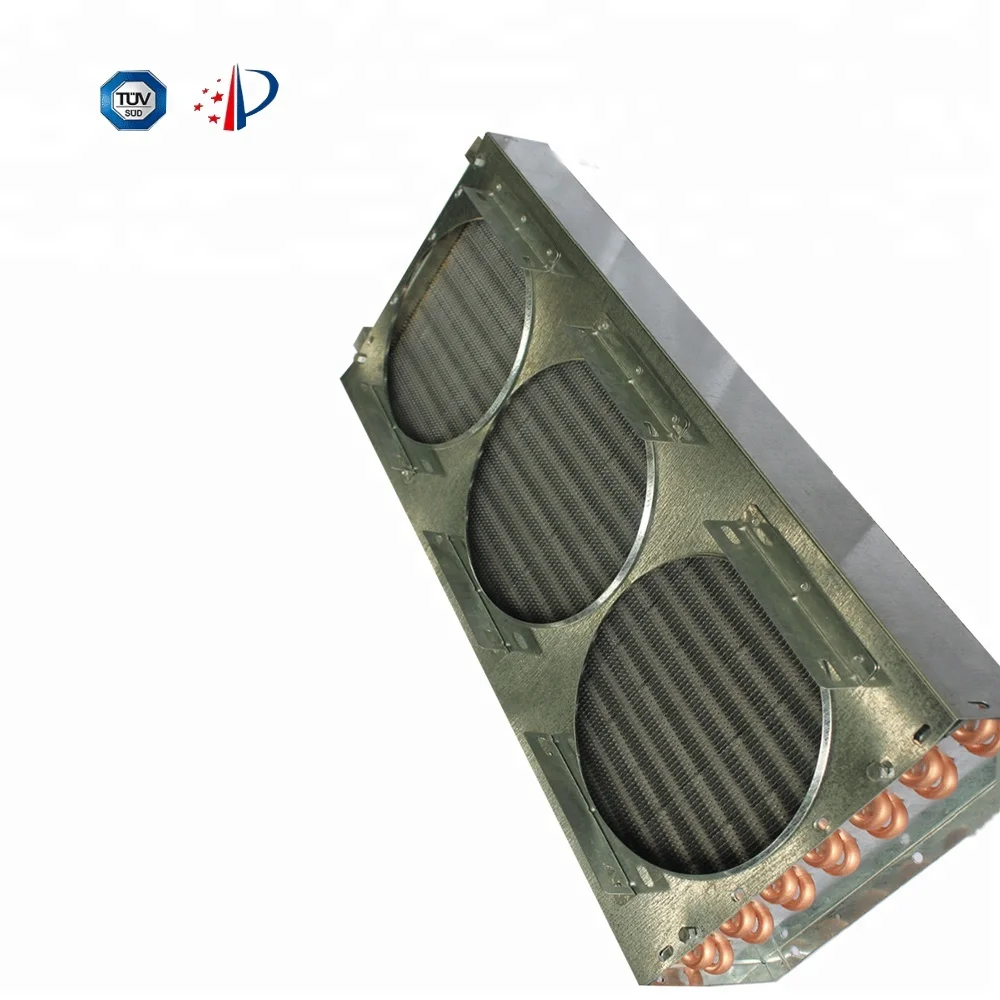

                                             Household appliances fin condenser

1) We can supply it according to your drawings or samples, and we can also design according to your needs.

2) Professional Factory: We are a professional manufacturer of condensers, evaporators, heat exchangers and radiators for over 20 years, with competitive prices, and quality manufacturers.

3) Respond quickly to your needs: We will reply within 24 hours after receiving your letter. If you have an emergency, please call us.

4) The most efficient service, best quality and good reputation.

5)Special-purpose products, please contact me


Products Show
Product Mold Table
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
Our Company

City

Our city
Household appliances fin condenser

Factory

Our  factory

Household appliances fin condenser

Our employees

Employees working on site

Household appliances fin condenser

Factory Interior

Comfortable work environment

Household appliances fin condenser

Mechanical equipment

The continuous operation of machinery

Household appliances fin condenser

Packing&Trnansport

Wooden box

Use this wooden box features: beautiful appearance, sturdiness and durability, export-specific, size can be produced according to customer requirements.

Carton

The use of this carton features: beautiful appearance, sturdiness and durability, export-specific, size can be produced according to customer requirements.

Mandatory Sign

 Such as "up", "wet", "carefully handled", "lift", "center of gravity", and "hands-on" when handling operations and storage and storage requirements and precautions, " Anti-heat, "frost", "heap height", commonly used indicators as shown

Air Transport


Ocean Shipping


Ground Transportation


Our Service

1. We will respond to your question within 24 hours.

2.Our quality control checks into raw materials, semi-finished and finished products.

3. has experienced technical staff. Including senior engineers and technical personnel more than 20 people, has many years of experience.

4. Our products can be customized. According to provide samples, the size, drawings, etc. to manufacture products to customer needs.

5. very competitive prices can improve the quality and improve the delivery date of the product.

6. We are professional manufacturer, has 18 years of manufacturing experience.

Certifications
