Plate refrigerator refrigeration evaporator

  • >=50 Pieces
    US $15.00
Model Number:
Refrigerator evaporator-TY series
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Type:
Refrigerator evaporator
Application:
Refrigeration Parts
Certification:
ROHS
Product name:
Refrigerator evaporator
Brand:
TianYang
Model:
Customer's drawings
Color:
Black refrigerator evaporator
Use for:
Refrigerator
Refrigerant:
R-134a
Year:
2018
Sports condition:
Inner circulation type
Operating pressure:
Atmospheric pressure
Structure type:
Vertical
Supply Ability
Supply Ability:
180904 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The refrigerator evaporator is packaged in the following way: carton box + wooden box + foam box.
The production cycle of the refrigerator evaporator is: the production and delivery are arranged within 15 days after receiving the advance payment.
Port
Qingdao or Tianjin
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(day) 10 To be negotiated
Video Description
Product Introduction

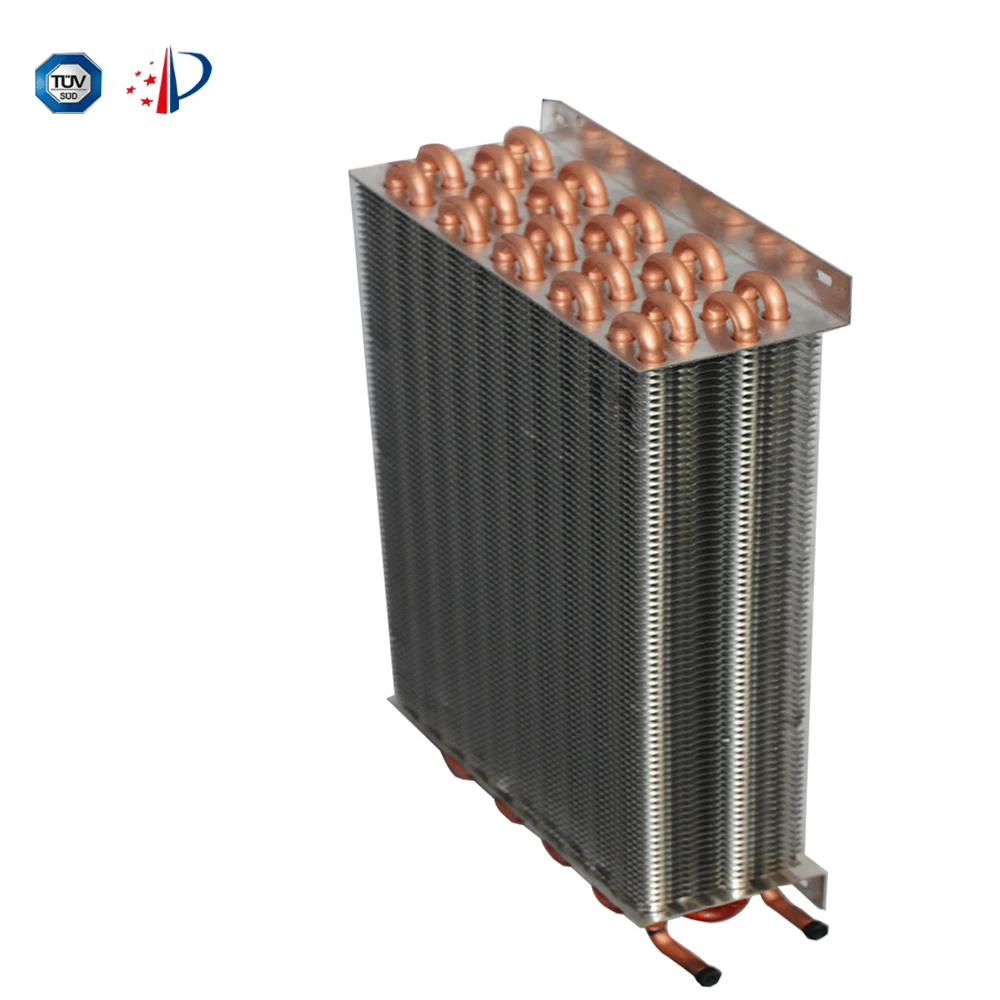

       Plate refrigerator refrigeration evaporator

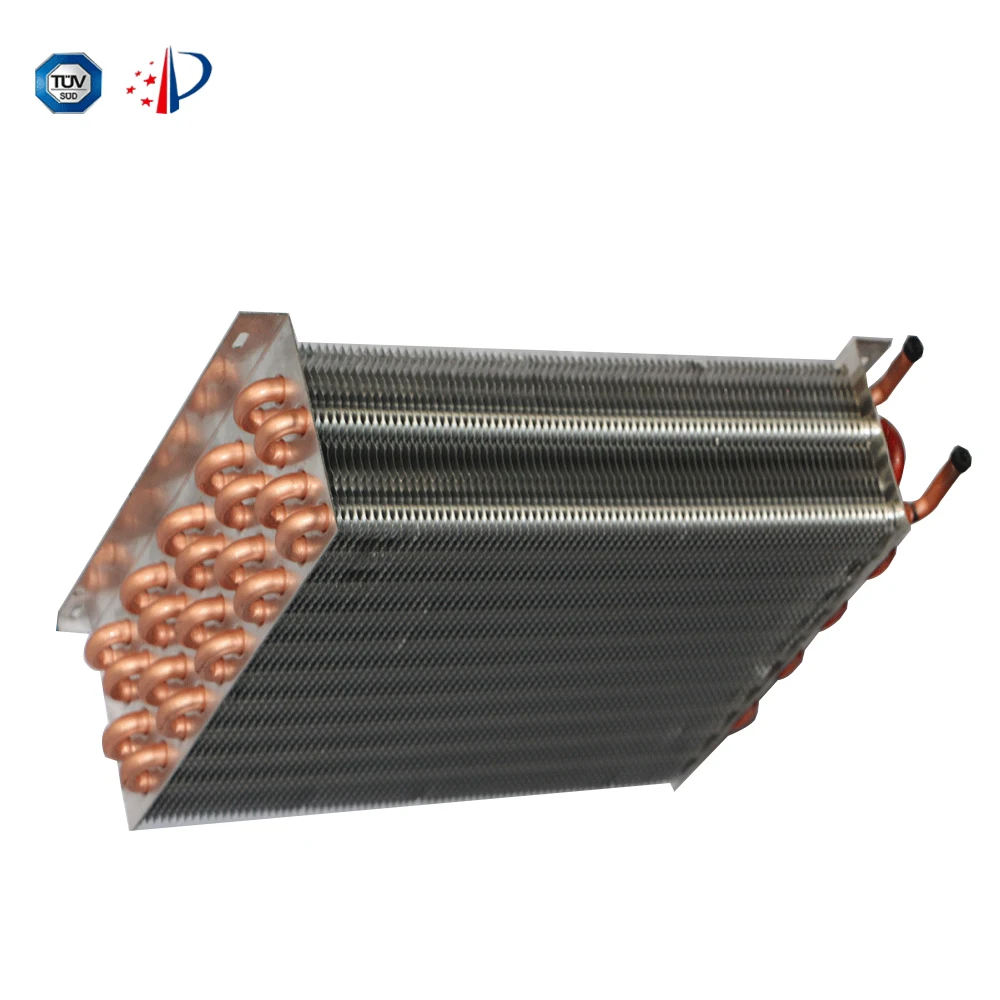

      refrigerator evaporator

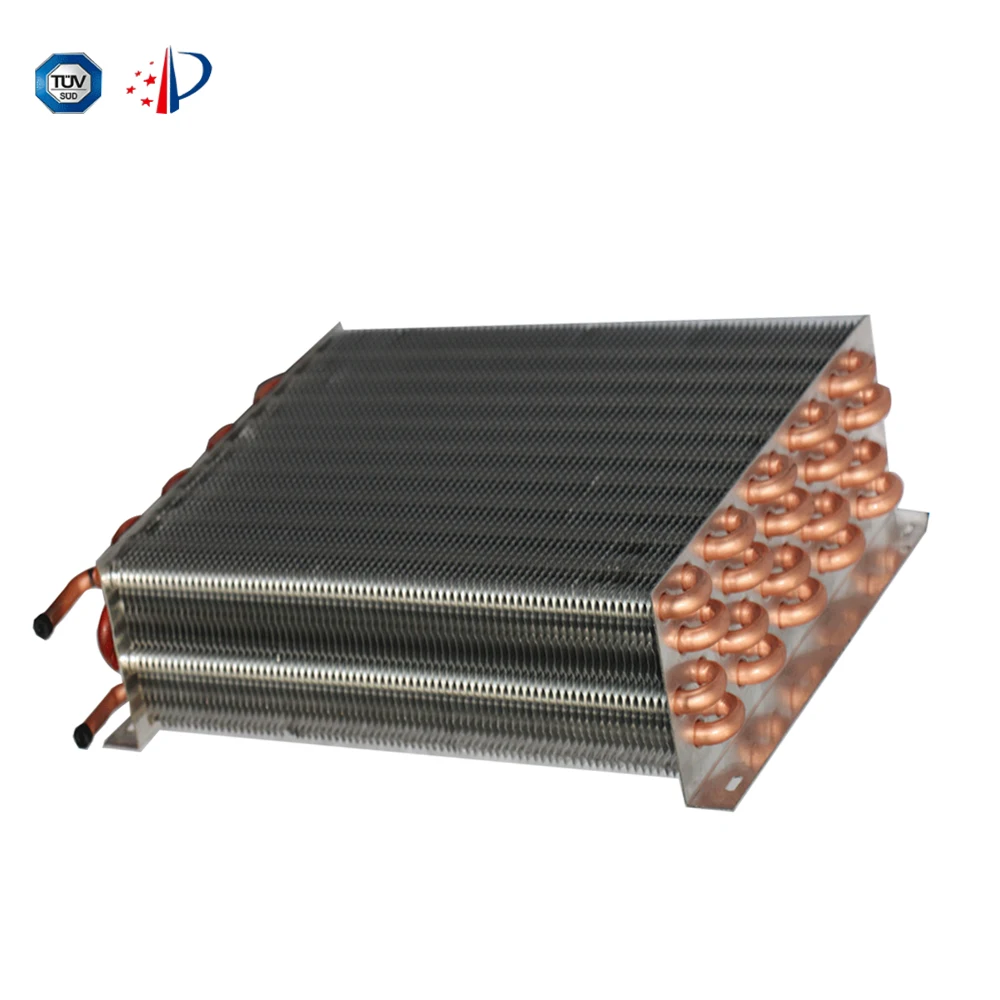

        refrigerator evaporator


      refrigerator evaporator


Product Details Show

Raw Material : copper tube , aluminium fin , galvanized plate and stainless steel plate
Size of copper pipe: diameter:7mm, 12.7mm, 9.52mm ,Inner Grooved Or smooth tube .
Aluminum foil : Hydrophilic or bare
Fin type :Louver Fin , Flat fin , corrugated fin
Pitch of fins can be adjusted between 1.5-8mm
Pitch of holes and pitch of rows:19.1*16mm,21*21.7mm,21*19mm.etc
No less than 3.0mpa air pressure (nitrogen)leak test
We can offer customized service as well
Suitable for R134a, R410a, refrigerant etc...

Mold Table
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
