Hydrophilic aluminum fin ice machine condenser

FOB Reference Price:Get Latest Price
$17.00 - $22.00 / Pieces | 100 Piece/Pieces (Min. Order)
Model Number:
hydrophilic aluminum fin ice maker condenser
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 Negotiable
Customization:
Customized packaging (Min. Order: 2 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
TianYang
Type:
Evaporator
Application:
Heater Parts
Certification:
CE
Refrigerant:
R-134a
Material:
Aluminum
Product name:
ice maker condenser
Voltage:
380V
Color:
Silver
Brand:
Tianyang
Tube material:
Aluminum fin or copper fin or Hydrophilic foil
Name:
ice maker condenser
Model:
Customer's Drawing
Fin material:
Hydrophilic Aluminun
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month ice maker condenser
Packaging & Delivery
Packaging Details
Packaging Details:Standard export foam board + wooden box packing
Delivery Detail: 15 days after received deposit
aluminum fin ice machine condenser
Port
Qingdao or Tianjin
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Video Description
Product Description

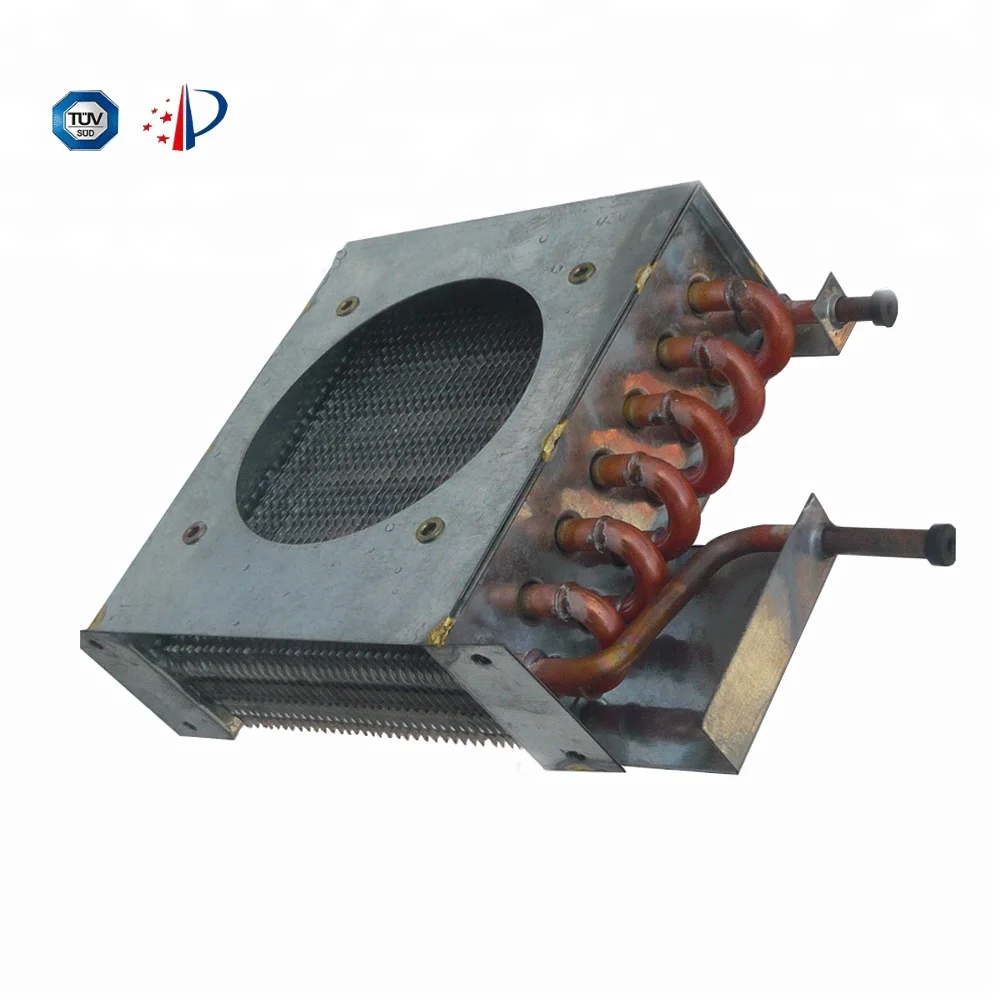

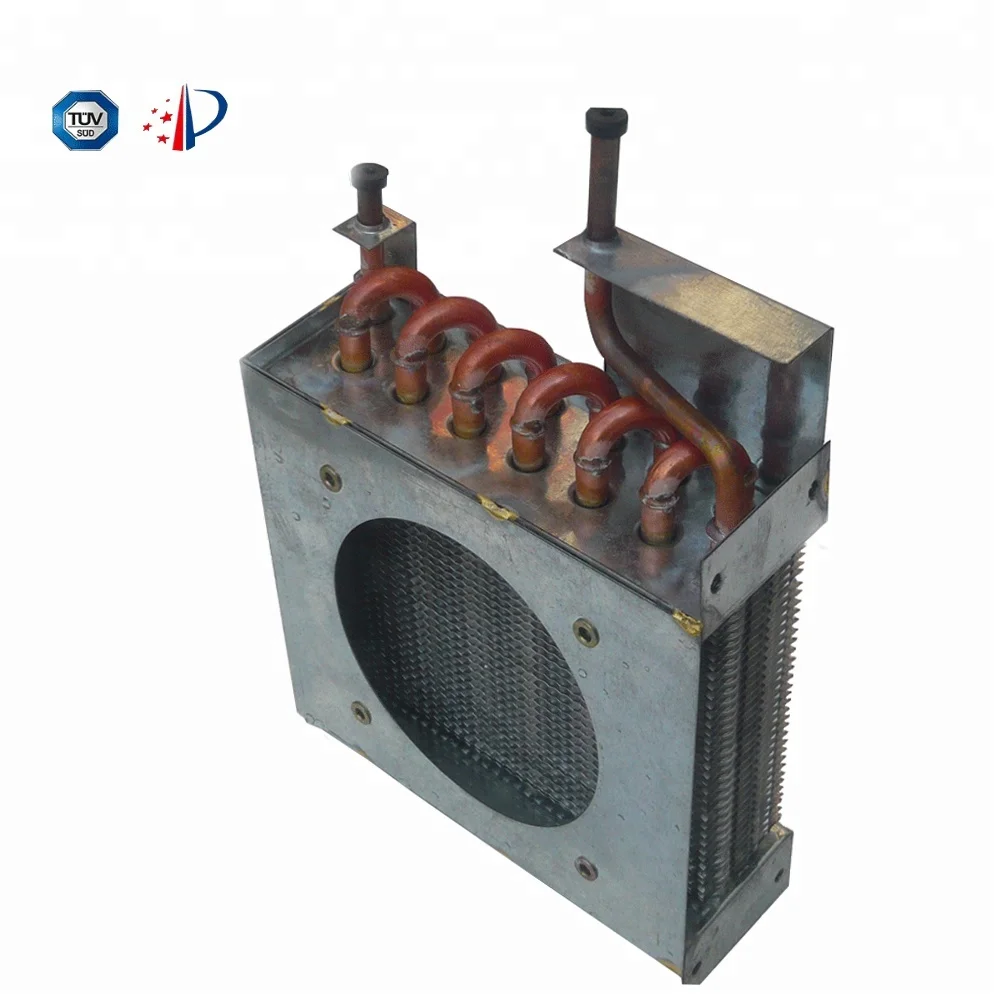

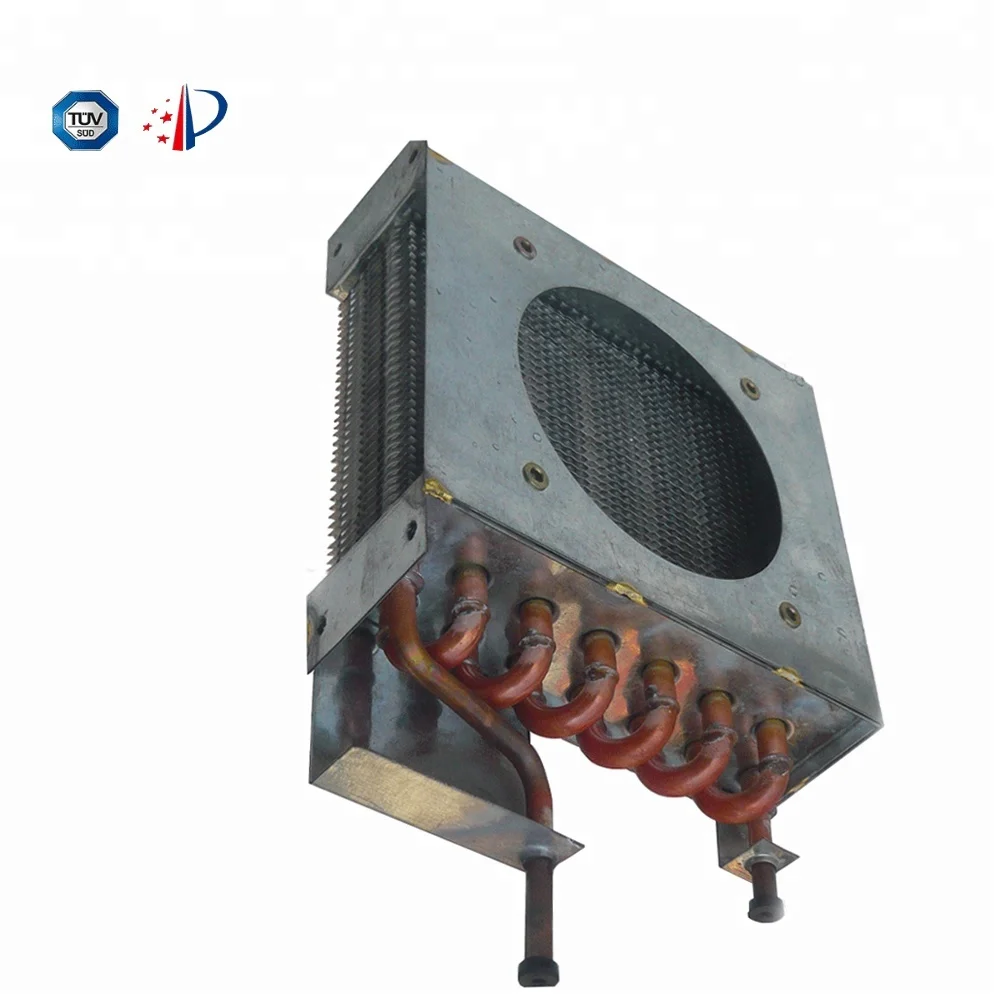

Hydrophilic aluminum fin ice machine condenser


aluminum fin ice machine condenser

aluminum fin ice machine condenser

aluminum fin ice machine condenser

1.Product materials: copper tube, aluminum fin, aluminum plate, galvanized sheet, stainless steel plate, etc.

2.Copper tube size: 7 mm, 12 mm, 9.52 mm, 12.7 mm, etc.

3.External steel pipe diameter: 19 mm, 22 mm, 28 mm (except for special requirements)

4.Fin material: aluminum foil, white foil, hydrophilic aluminum foil, hydrophilic foil, etc.

5.Fin type: aluminum fin, water ripple, window opening, etc.

6.Fin spacing can be adjusted between 1.5 mm and 7.5 mm

7.Hole spacing and line spacing: 19.1*16 mm, 21*12.7 mm, 21*19 mm, 25*25 mm, etc.

8.Windshield diameter: 210 mm, 260 mm, 310 (300) mm, all flanged, 240 mm without flange.

9.We can also provide customized services

10.Suitable for R134A, R404A refrigerant, etc...

Product Mold Table
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
