Plate type vertical cabinet of evaporator coil price

  • >=50 Pieces
    $205.00
Model Number:
12.7-8*7*2180 12.7-8*7*2680 32 tubes
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Type:
Vertical cabinet evaporator
Application:
Vertical cabinet
Certification:
ROHS
Warranty:
3 years
After-sales Service Provided:
Free spare parts
Product name:
Vertical cabinet evaporator
Model:
12.7-8*7*2180 12.7-8*7*2680 32 tubes
Dimensions:
2500*230*260(m)
Item number:
180831-1320 180831-1565
Shape:
2500*230*260 3000*230*260
Evaporation area:
80(m2)
Power:
75(KW)
Use for:
Supermarket evaporator refrigeration equipment freezer evaporator
Structure type:
Horizontal
Operating pressure:
Pressurize
Supply Ability
Supply Ability:
180905 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The vertical cabinet evaporator is packaged in the following way: carton box + wooden box + foam box.
The production cycle of the vertical cabinet evaporator is: the production and delivery are arranged within 15 days after receiving the advance payment.
Port
Qingdao or Tianjin
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 To be negotiated
Video Description
Products Show

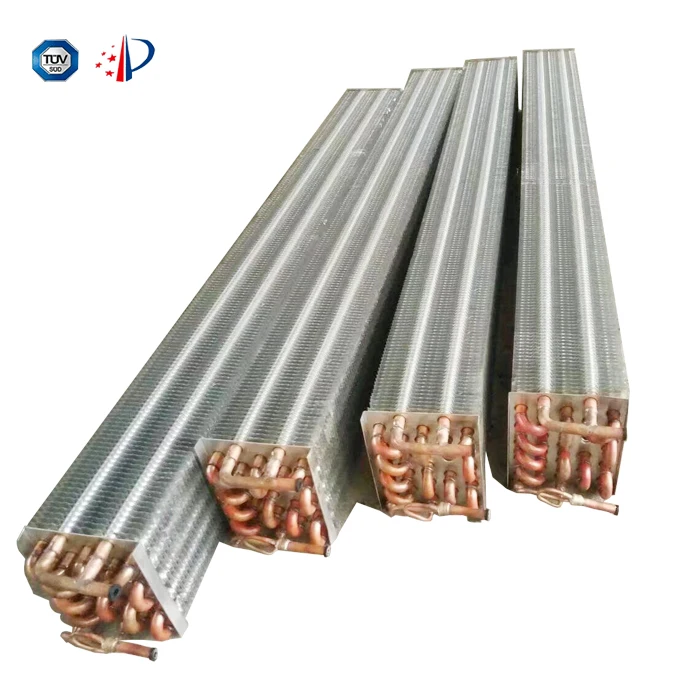

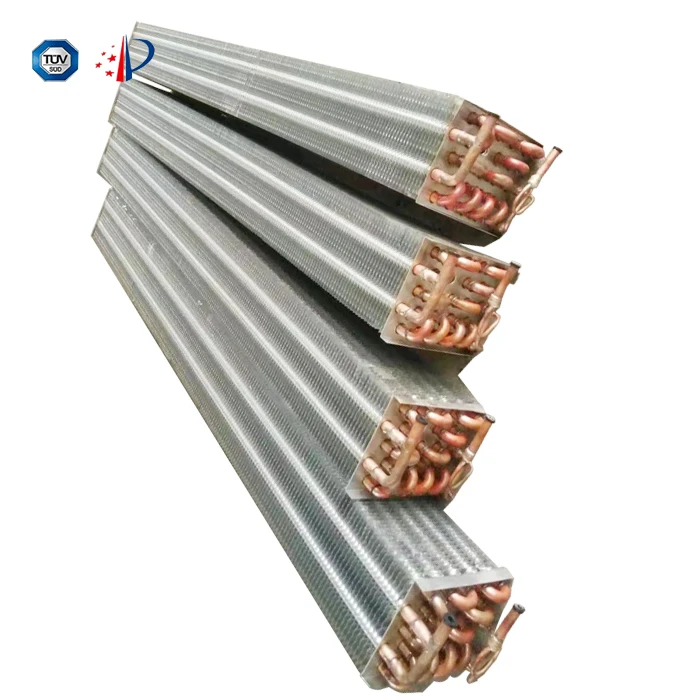

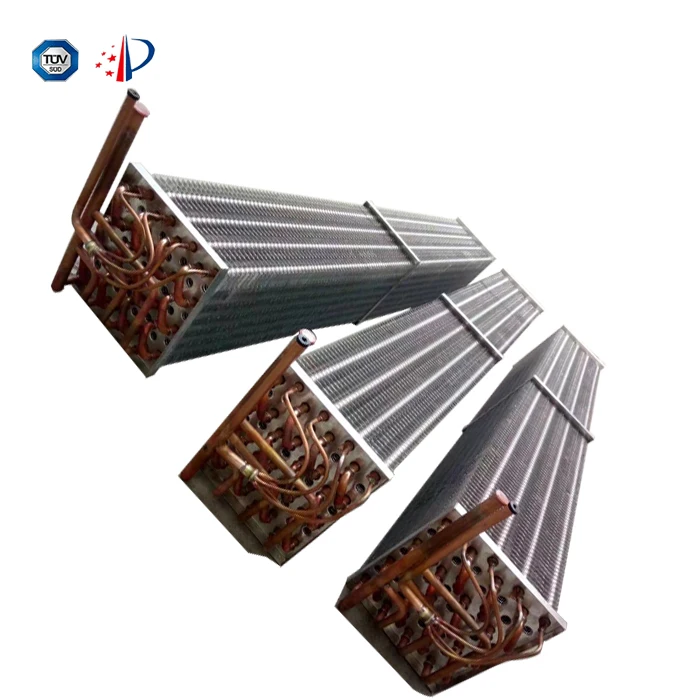

 Plate type vertical cabinet evaporator coil price


vertical cabinet evaporator


       vertical cabinet evaporator


vertical cabinet evaporator


vertical cabinet evaporator


vertical cabinet evaporator


vertical cabinet evaporator


1.Raw Material : copper tube , aluminium fin , galvanized plate and stainless steel plate
2.Size of copper pipe: diameter:7mm, 12.7mm, 9.52mm ,Inner Grooved Or smooth tube .
3.Aluminum foil : Hydrophilic or bare
4.Fin type :Louver Fin , Flat fin , corrugated fin
5.Pitch of fins can be adjusted between 1.5-8mm
6.Pitch of holes and pitch of rows:19.1*16mm,21*21.7mm,21*19mm.etc
7.No less than 3.0mpa air pressure (nitrogen)leak test
8.We can offer customized service as well
9.Suitable for R134a, R410a, refrigerant etc...
*Please refer to the following table (product template table) for detailed parameters.
Products model
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
Main Products






.







About Our Company

   Tianyang Electrical Appliance Co, Ltd. since its establishment in 1998 to producerefrigeration equipment with heat exchangers; that is, condenser, evaporator heat piperadiator-based, widely used in refrigerators, refrigerators, air conditioners, harvesters water tankigh-end drinking fountains. More than 65% of the partners are more than 10 years. 18 years hasgrown, has now become an outstanding supplier of the refrigeration industry; so that in early2015 Shuanghui Group for the community to tender the name of my company to the condensethe evaporator designated product suppliers.
