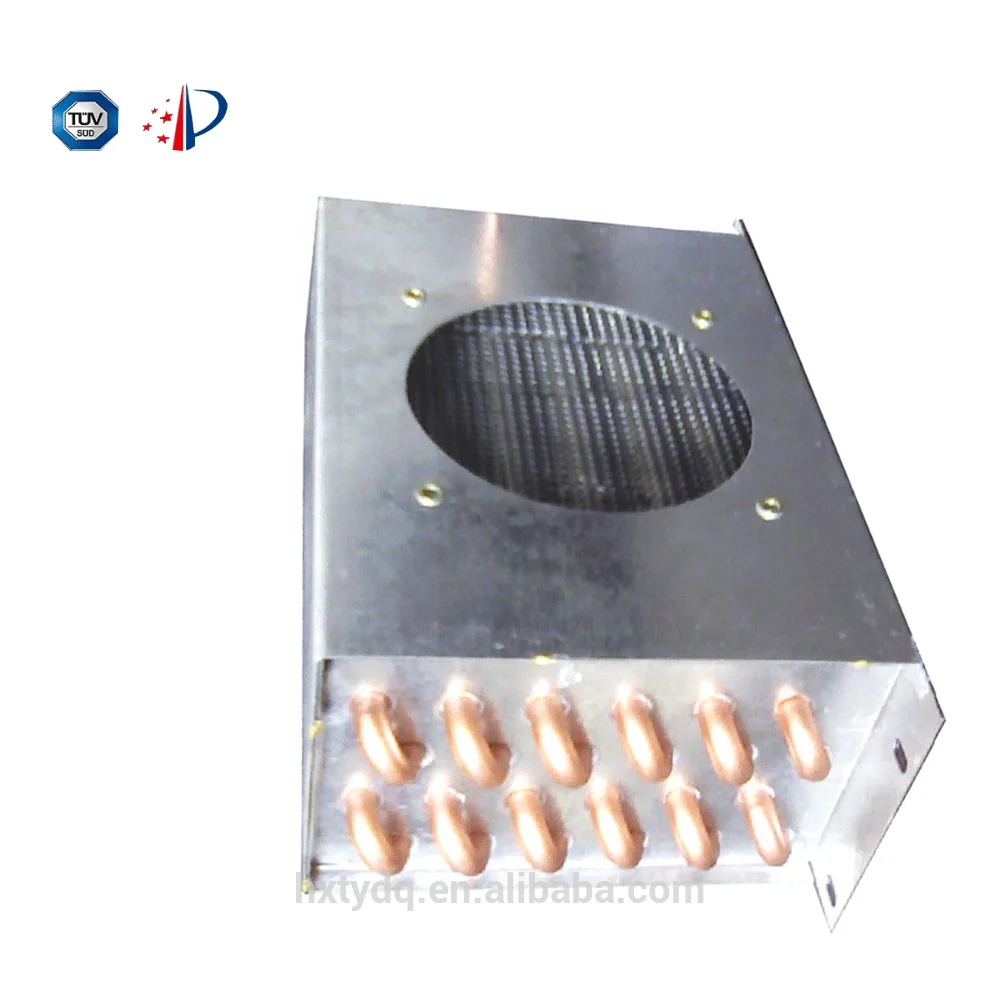

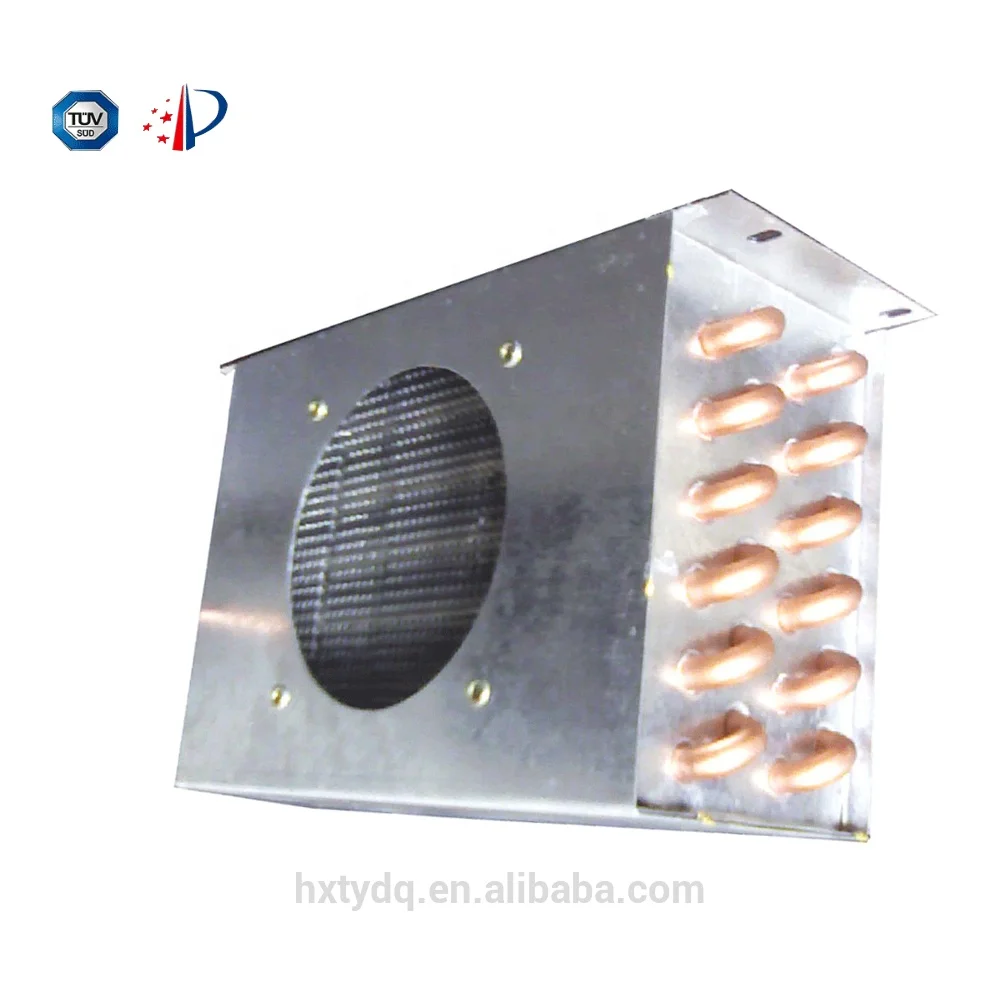

High performance copper tube fin condenser

  • >=50 Pieces
    $25.00
Model Number:
commercial china evaporative condenser
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Type:
Heat Exchanger Tube
Application:
Heater Parts
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
No after-sales service
Product name:
copper tube fin condenser
Material:
copper
Fin material:
Hydrophilic foil
Tube material:
copper tube
Refrigerant:
R-134a
Brand:
Tianyang
Color:
Silver
Voltage:
380V
Model:
Customer's Drawing
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Commercial condenser
Packaging & Delivery
Packaging Details
Packaging Details:Standard export foam board + wooden box packing
Delivery Detail: 15 days after received deposit
Commercial condenser
Port
Qingdao or Tianjin
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Video Description
Product & Materials

copper tube fin condenser

copper tube fin condenser

copper tube fin condenser

This is High performance copper tube fin condenserand its materials.

              Copper tube

          Hydrophilic foil

        Other materials

Products model
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate

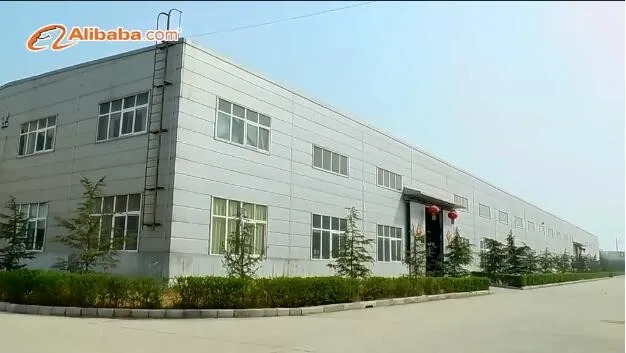

Our Company

         TianYang Electrical Appliance Co, Ltd.

       Tian Yang Electrical Appliance Co, Ltd. since its establishment in 1998 to producee  frigeration equipment with heat exchangers; that is, condenser, evaporator heat pipe radiator-based, widely used in refrigerators, refrigerators, air conditioners, harvesters water tankgh-end drinking fountains. More than 65% of the partners are more than 10 years. 18 years hasgrown, has now become an outstanding supplier of the refrigeration industry; so that in early 2015  Shuanghui Group for the community to tender the name of my company to the condenser,the evaporator designated product supplier


Certifications
Packing & Delivery

*1.The condensers  and  evaporators are packaged in the following way: carton box + wooden box + foam box.
*2.Productions and delivery of the outdoor unit condenser are scheduled within 15 days of receipt of the advance payment.


                Solid boxes

Products ready for release

Run to the owner's product
