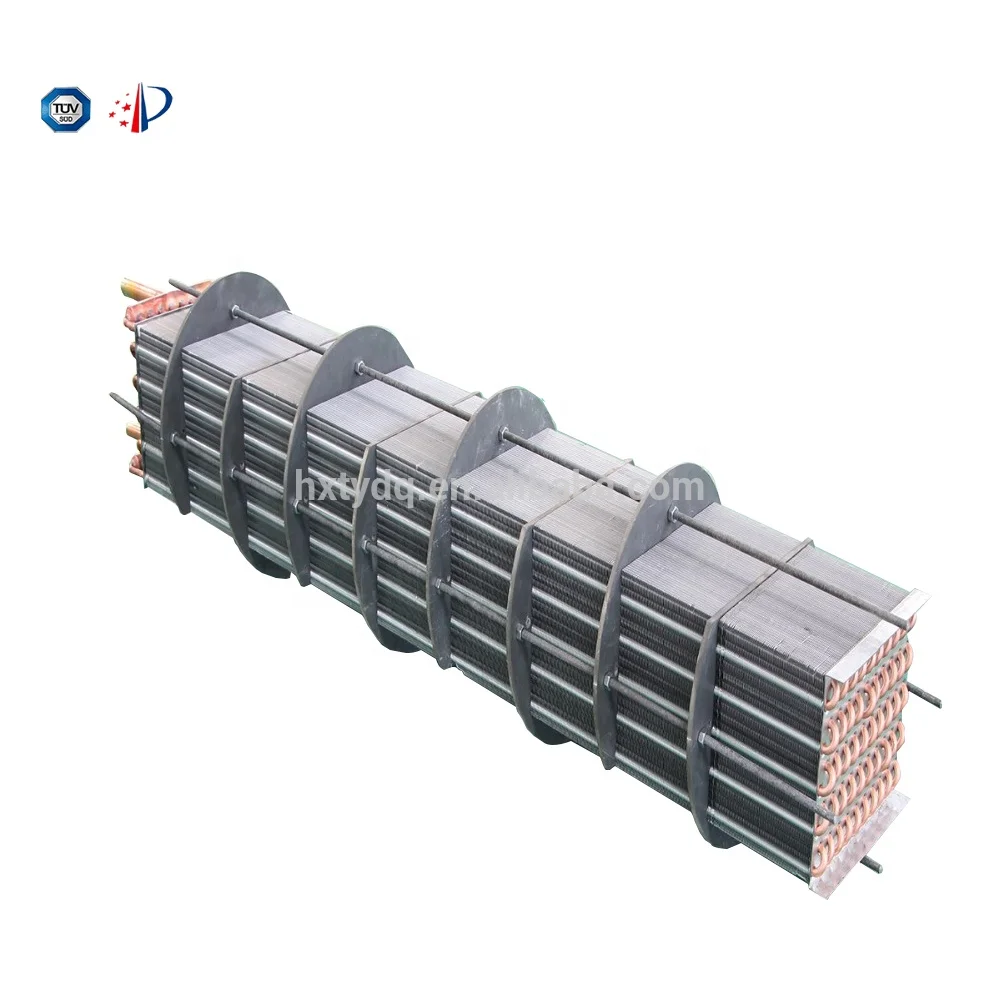

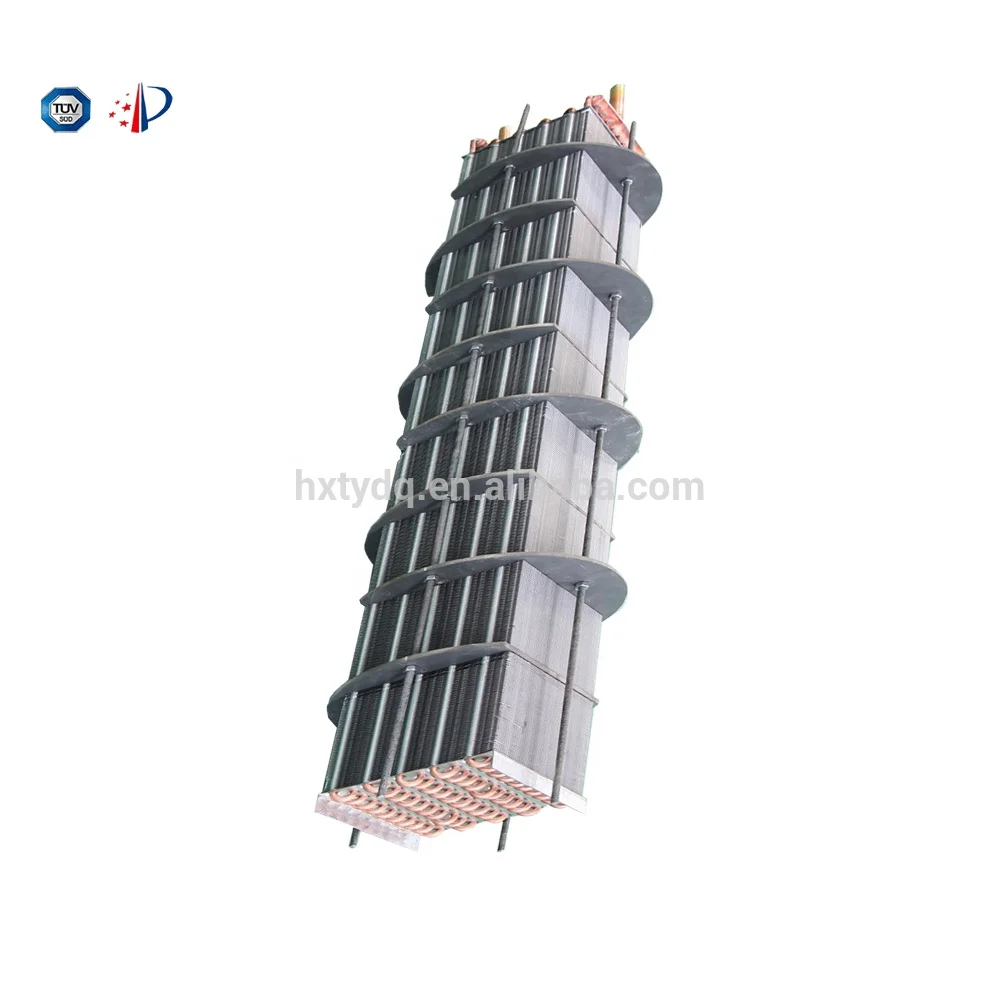

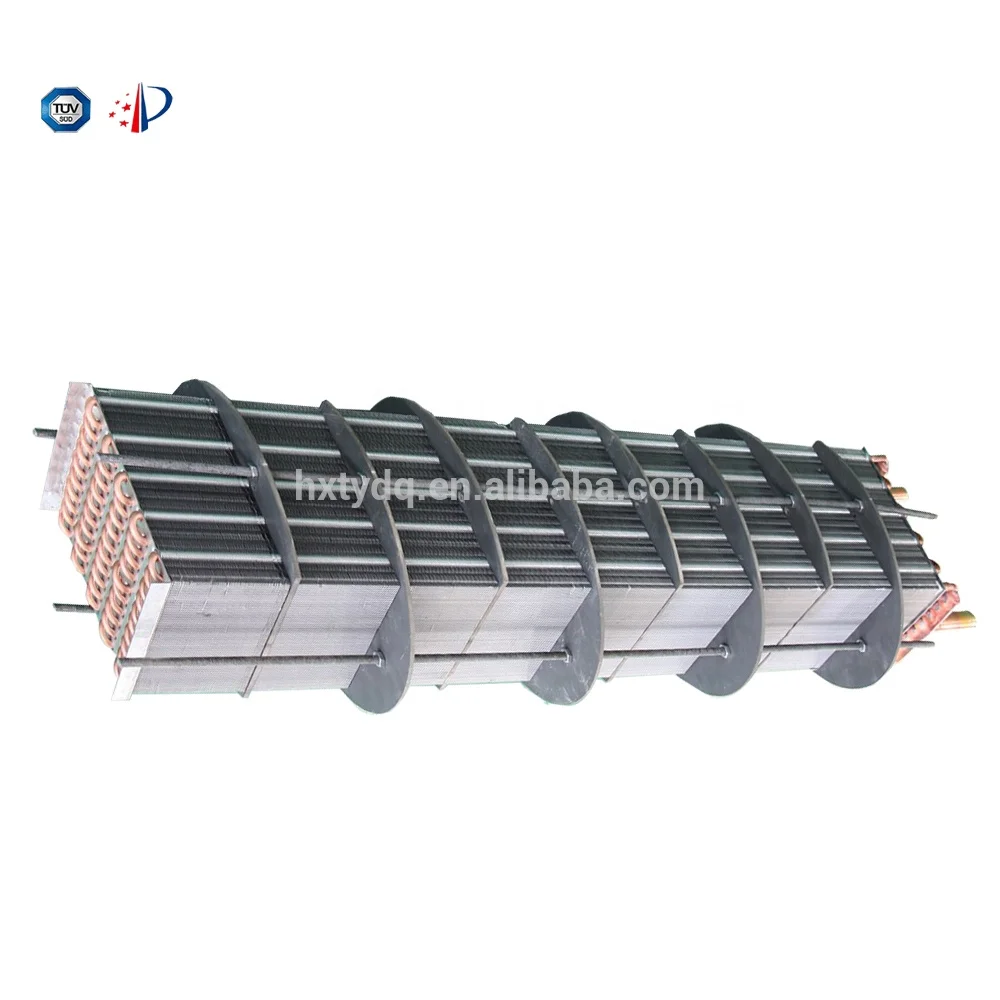

Refrigeration equipment for cooling machine evaporator price

  • 20 - 49 Pieces
    US $240.00
  • >=50 Pieces
    US $230.00
Model Number:
TY-9.52*10*10*1350
Customization:
Production and processing according to drawings (Min. Order: 3 Pieces)
Report Suspicious Activity
Overview
Quick Details
Type:
Cooling machine evaporator
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Certification:
ROHS
After-sales Service Provided:
Free spare parts
Warranty:
3 years
product usage:
Evaporator for drying equipment
Model:
9.52*10*10*1350
Brand:
TianYang
Dimensions:
1500*350*200mm
spacing of fin:
2.5
Exchanging Area:
50
Material:
copper tube
Fin:
aluminum fin
Packing:
Standard carton + wooden box + foam box
weight:
8kg
Supply Ability
Supply Ability:
181116 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The cooling machine evaporators are packaged in the following way: carton box + wooden box + foam box.
Production and delivery of the cooling machine evaporators are scheduled within 15 days of receipt of the advance payment.
Port
Qingdao or Tianjin
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(day) 10 To be negotiated
Video Description
Product & Materials

cooling machine evaporator

 cooling machine evaporator

cooling machine evaporator

This is Refrigeration equipment for cooling machine evaporator price and its materials.

              Copper tube

          Hydrophilic foil

        Other materials

Products model
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
