Copper tube display cabinet evaporator manufacturer

  • >=50 Pieces
    US $40.00
Model Number:
Display cabinet evaporator-TY series
Customization:
Production and processing according to drawings (Min. Order: 3 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Type:
Evaporator
Application:
Refrigeration Parts
Certification:
ROHS
Warranty:
3 years
After-sales Service Provided:
Free spare parts
Product name:
Display cabinet evaporator
Brand:
TianYang
Sports condition:
Inner circulation type
Operating pressure:
Atmospheric pressure
Shape:
Tube type
Structure type:
Vertical
Weight:
Subject to the actual product
Packing:
Standard carton + wooden box + foam box
Model:
Customer's drawings
Custom processing:
Yes
Supply Ability
Supply Ability:
181123 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The display cabinet evaporators are packaged in the following way: carton box + wooden box + foam box.
Production and delivery of the display cabinet evaporators are scheduled within 15 days of receipt of the advance payment.
Port
Qingdao or Tianjin
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(day) 10 To be negotiated
Video Description
Product & Materials

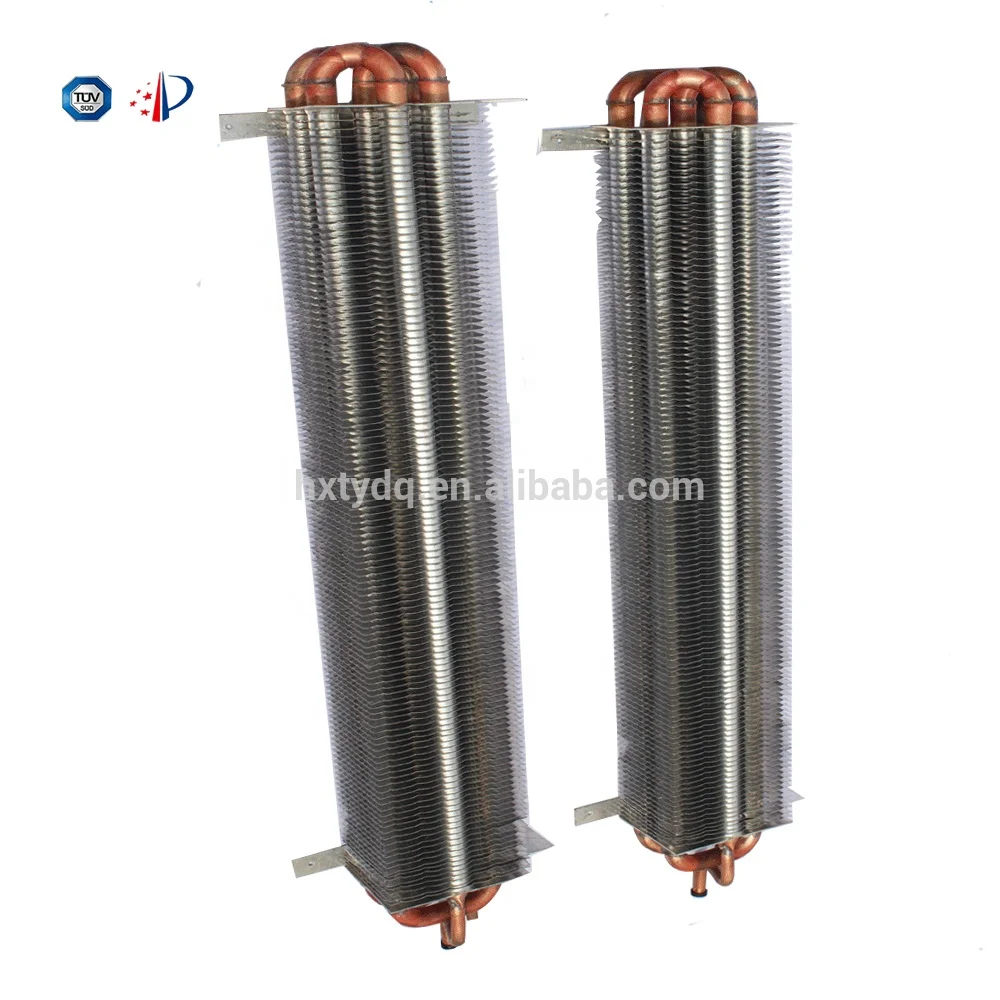

display cabinet evaporator

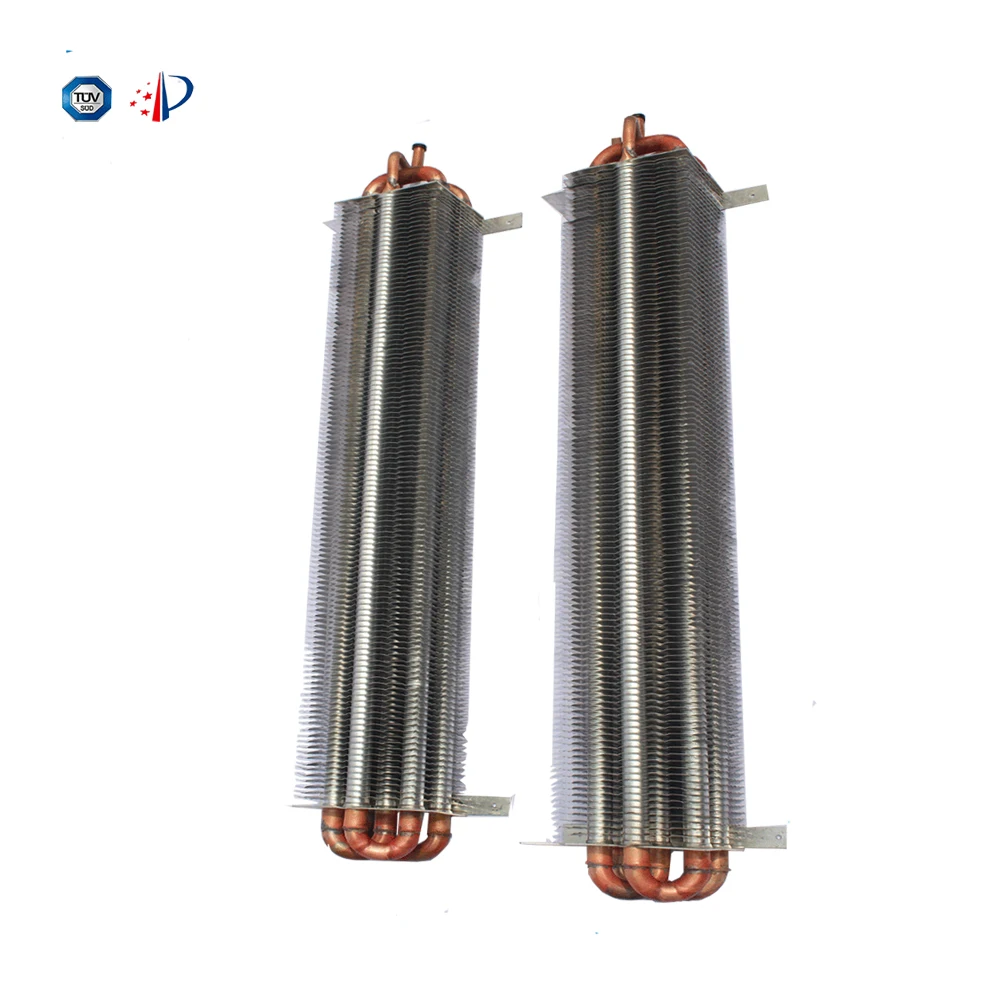

 display cabinet evaporator

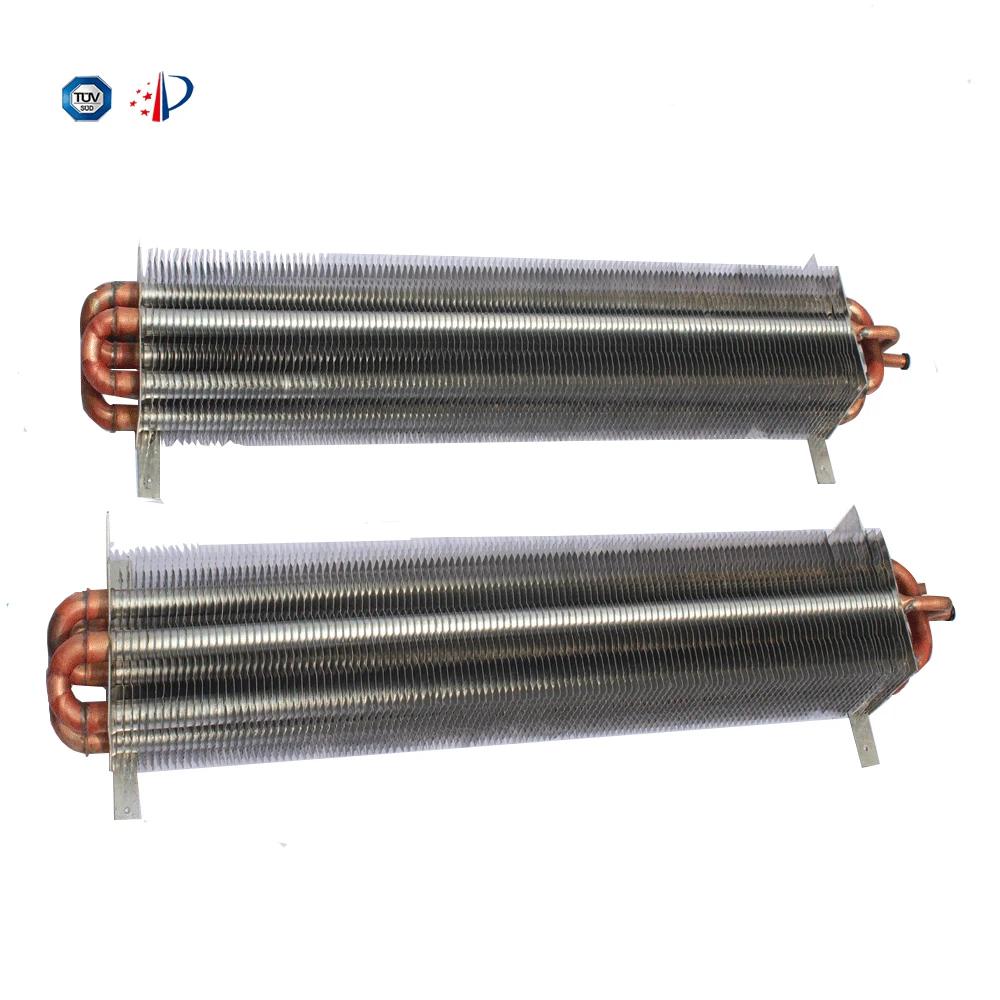

display cabinet evaporator

This is Copper tube display cabinet evaporator manufacturer and its materials.

              Copper tube

          Hydrophilic foil

        Other materials

Products model
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
Our Company

         TianYang Electrical Appliance Co, Ltd.

       Tian Yang Electrical Appliance Co, Ltd. since its establishment in 1998 to producee  frigeration equipment with heat exchangers; that is, condenser, evaporator heat pipe radiator-based, widely used in refrigerators, refrigerators, air conditioners, harvesters water tankgh-end drinking fountains. More than 65% of the partners are more than 10 years. 18 years hasgrown, has now become an outstanding supplier of the refrigeration industry; so that in early 2015  Shuanghui Group for the community to tender the name of my company to the condenser,the evaporator designated product supplier


Certifications
Packing & Delivery

*1.The condensers  and  evaporators are packaged in the following way: carton box + wooden box + foam box.
*2.Productions and delivery of the outdoor unit condenser are scheduled within 15 days of receipt of the advance payment.


                Solid boxes

Products ready for release

Run to the owner's product
