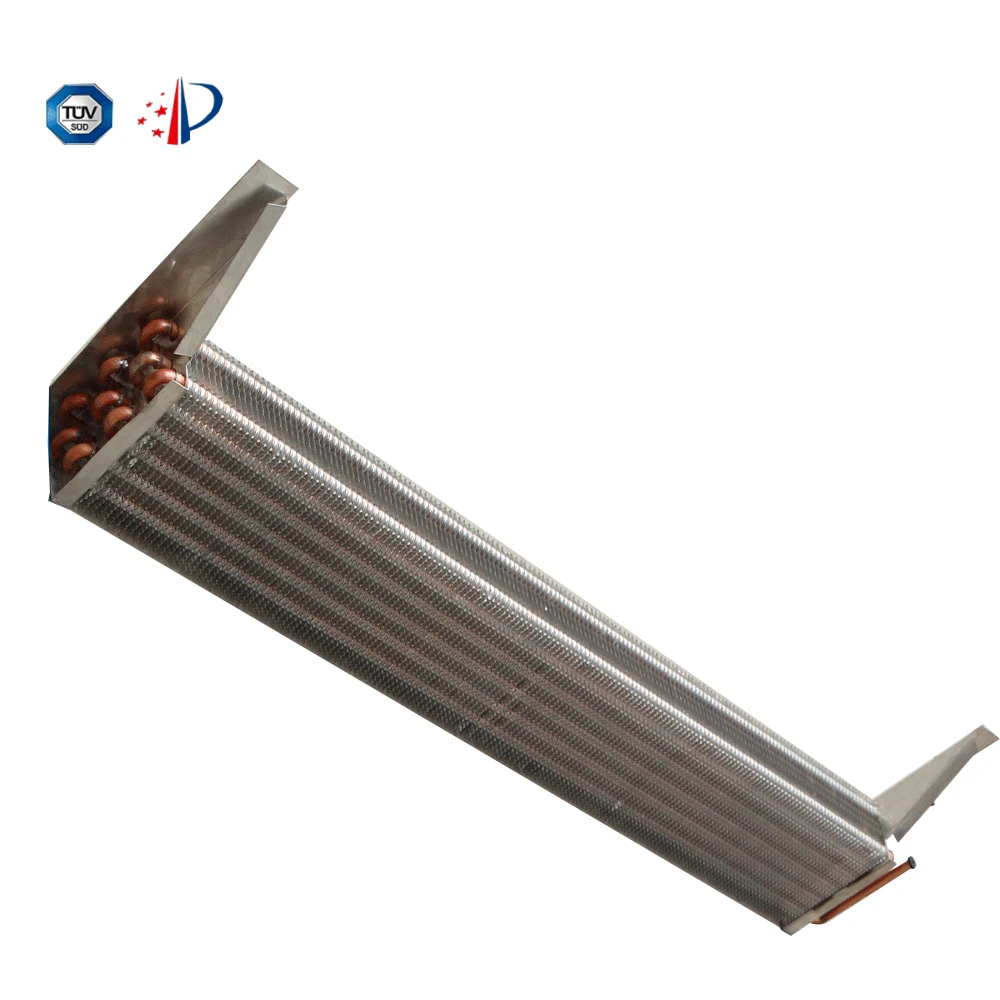

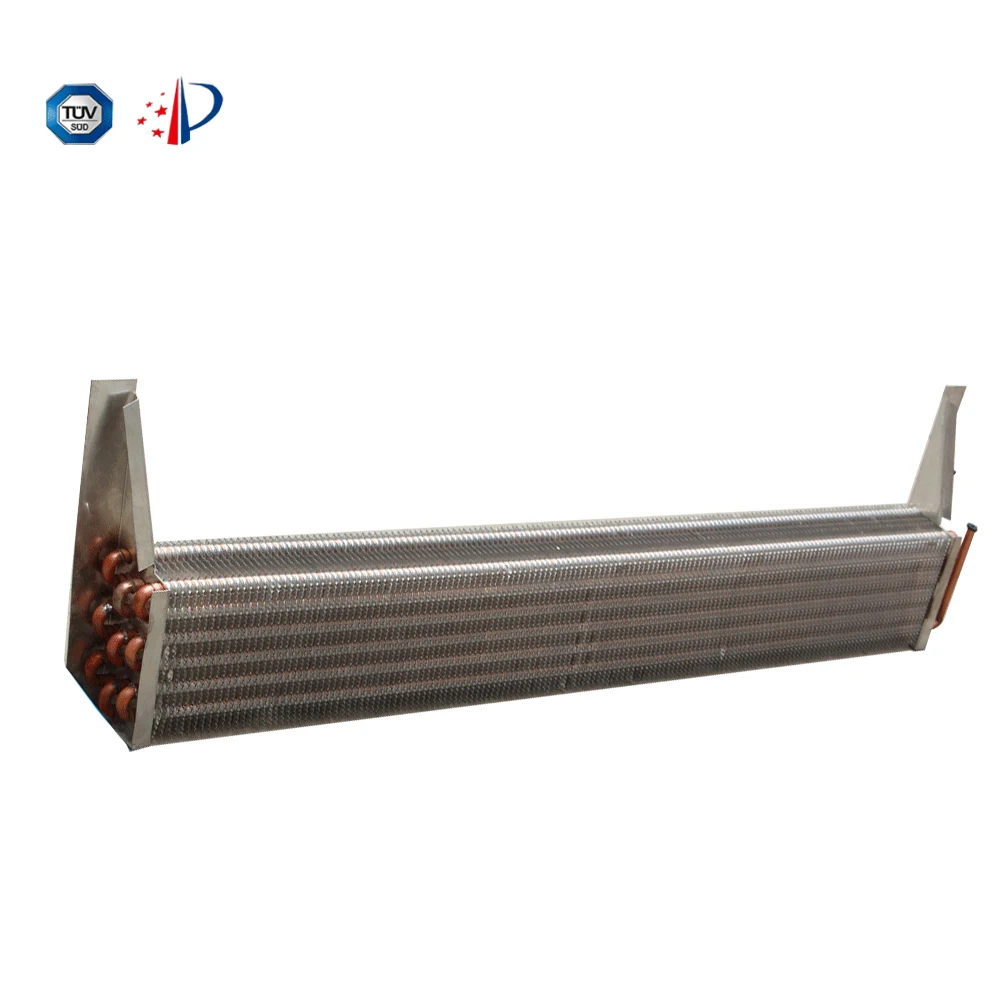

Dual system air conditioning heat pump plate evaporator

  • >=50 Pieces
    US $43.00
Model Number:
TY-4063-TY series
Customization:
Production and processing according to drawings (Min. Order: 3 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Type:
Evaporator
Application:
Refrigeration Parts
Certification:
ROHS
Product Name:
Air-conditioning evaporator
Model:
TY-4063
Dimensions:
600*400(m)
Power Source:
0.75(kw)
Evaporation area:
50 (m2)
Weight:
5(kg)
Uses:
Refrigeration equipment
Structural form:
Vertical
Movement status:
Inner circulation type
Operating pressure:
Atmospheric pressure
Supply Ability
Supply Ability:
181121 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The air conditioner evaporators are packaged in the following way: carton box + wooden box + foam box.
Production and delivery of the air conditioner evaporators are scheduled within 15 days of receipt of the advance payment.
Port
Qingdao or Tianjin
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(day) 10 To be negotiated
Video Description
Product & Materials

air conditioning evaporator

 air conditioning evaporator

air conditioning evaporator

This is Dual system air conditioning heat pump plate evaporator and its materials.

              Copper tube

          Hydrophilic foil

        Other materials

Products model
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
