Copper tube refrigerated car evaporator manufacturer

  • >=50 Pieces
    US $114.00
Model Number:
Refrigerated car evaporator-TY-9.52-40 root canal-1000 Refrigerated car evaporator-TY-9.52-20 root canal -780
Customization:
Production and processing according to drawings (Min. Order: 3 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Type:
Evaporator
Application:
Refrigerated car
Certification:
ROHS
Product name:
Refrigerated car evaporator
Model:
TY-9.52-40 root canal-1000
Model 2:
TY-9.52-20 root canal -780
Core weight:
9.52-6*6*950(kg)
Weight:
350 (kw)\350(kw)
Dimensions:
1082*490*385(mm)
Dimensions 2:
1070*600*150(mm )
Dimensions 3:
1096*666*149(mm)
Operating pressure:
Atmospheric pressure
Custom processing:
Yes
Supply Ability
Supply Ability:
181121 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The refrigerated car evaporators are packaged in the following way: carton box + wooden box + foam box.
Production and delivery of the refrigerated car evaporators are scheduled within 15 days of receipt of the advance payment.
Port
Qingdao or Tianjin
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(day) 10 To be negotiated
Video Description
Product & Materials

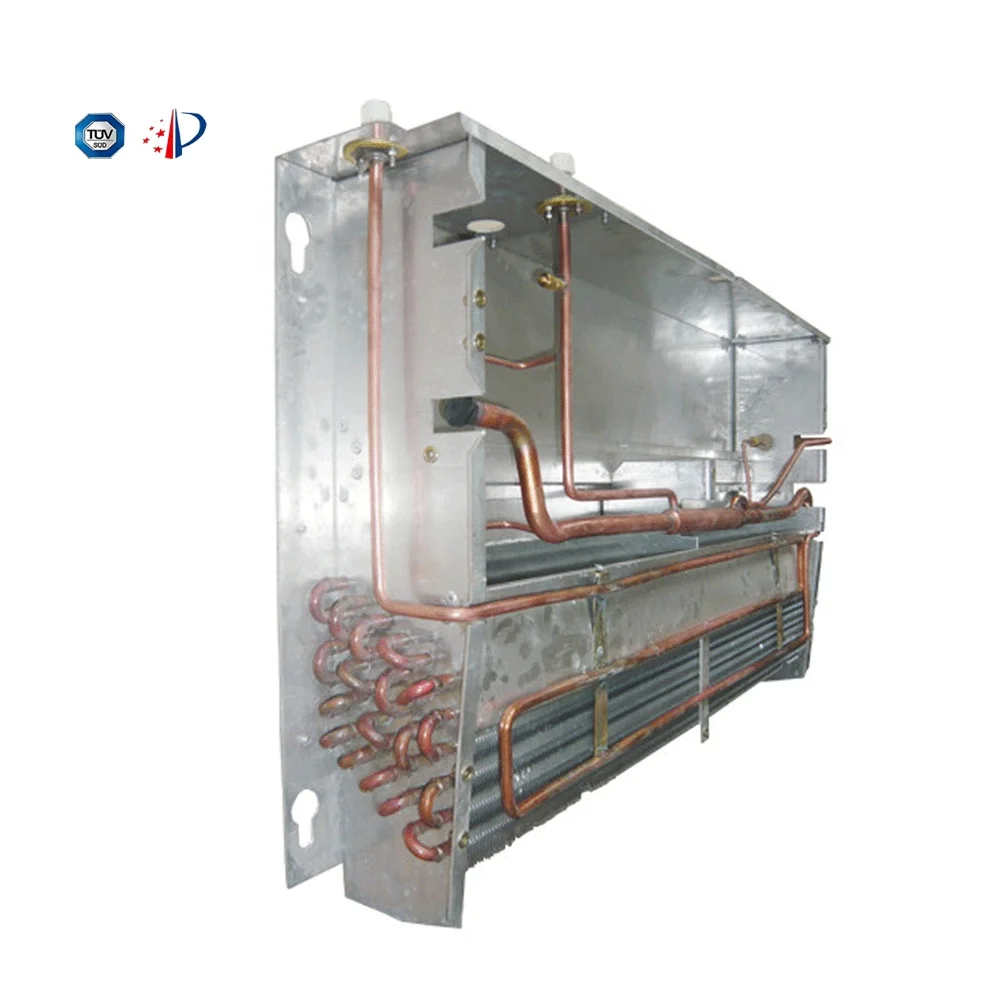

refrigerated car evaporator

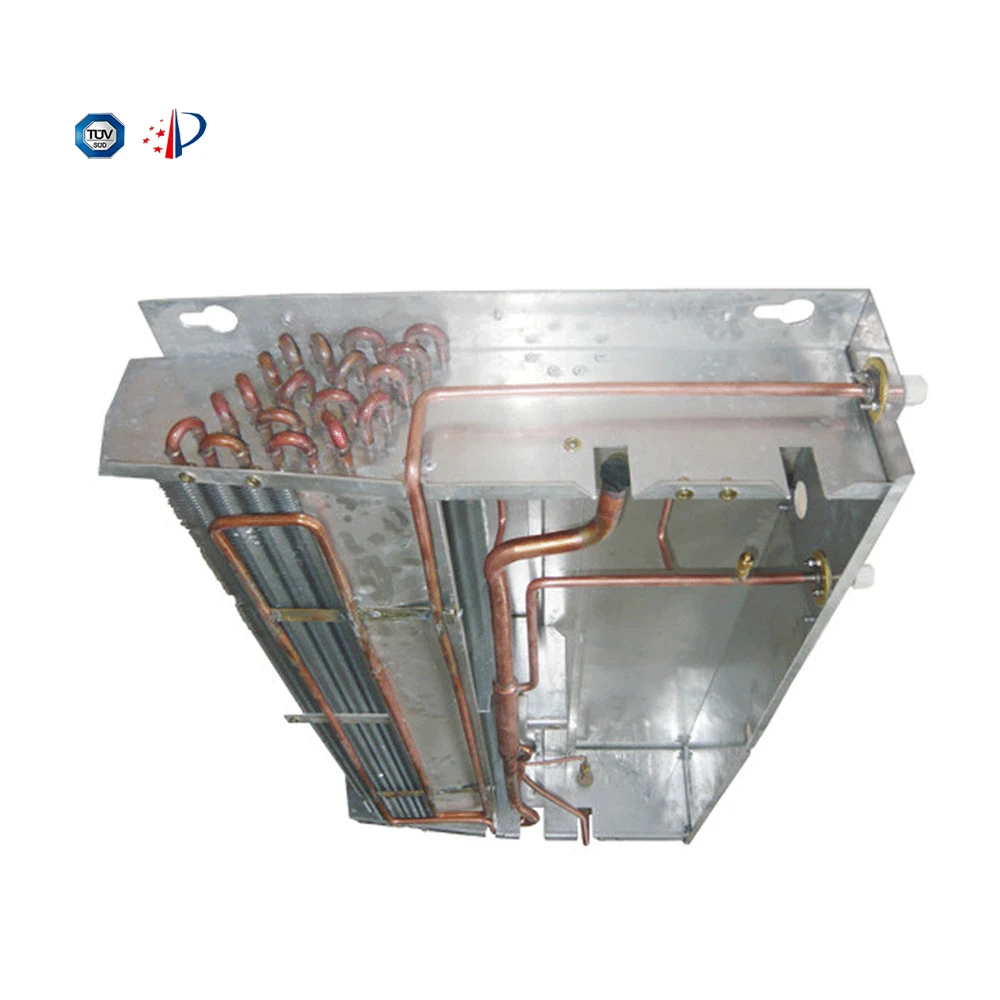

 refrigerated car evaporator

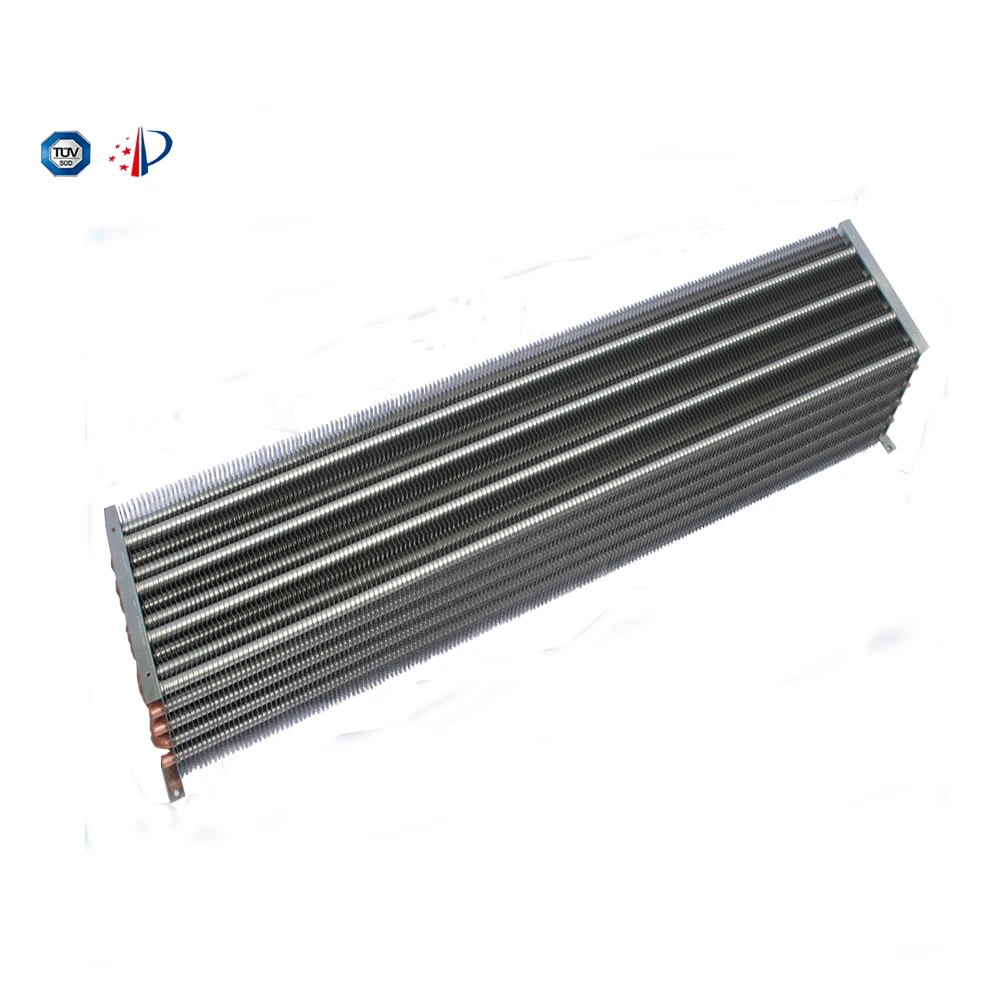

refrigerated car evaporator

This is Copper tube refrigerated car evaporator manufacturer and its materials.

              Copper tube

          Hydrophilic foil

        Other materials

Products model
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
