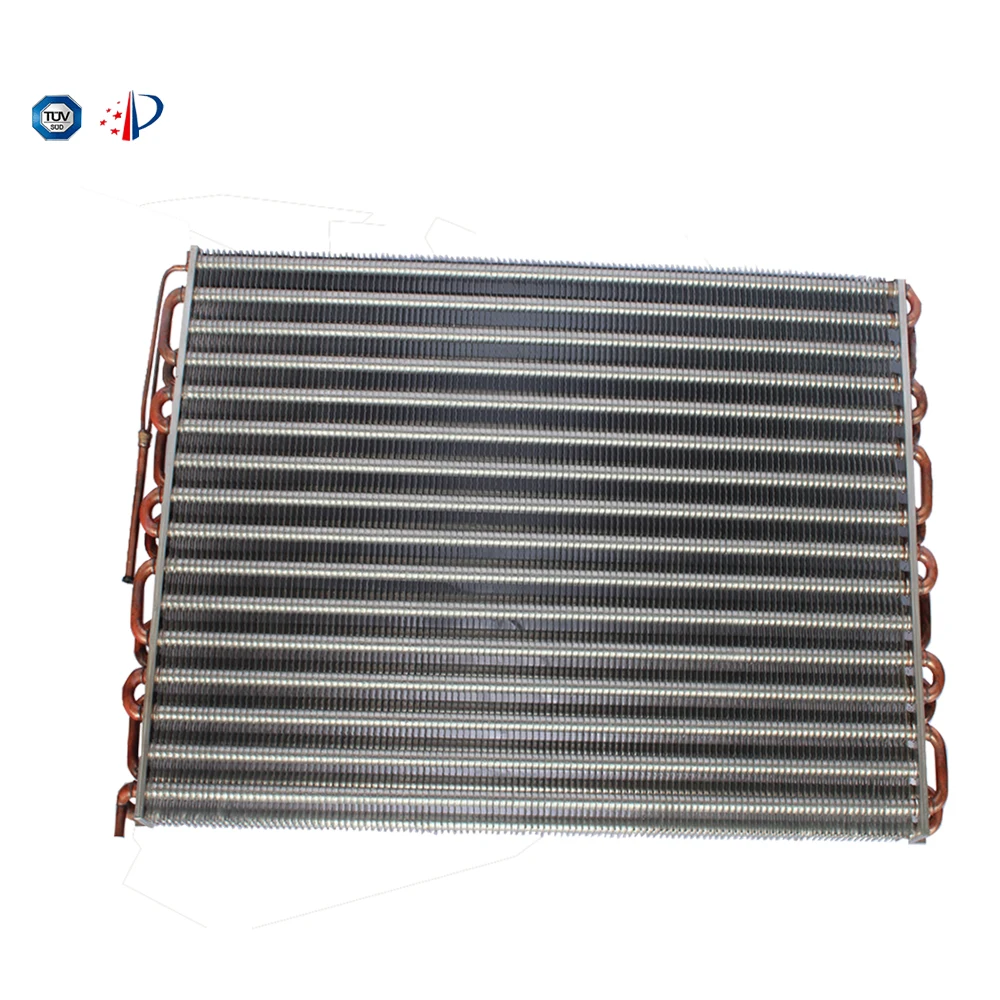

Copper tube aluminum fin frost-free refrigerator evaporator

  • >=50 Pieces
    US $26.00
Model Number:
TYZF001212-Frost-free refrigerator evaporator
Customization:
Production and processing according to drawings (Min. Order: 3 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Type:
Heat Exchanger Tube
Application:
Heater Parts
Certification:
ROHS
Product name:
Frost-free refrigerator evaporator
Brand:
TianYang
Dimensions:
400*400(mm)
Power Source:
2100(kw)
Evaporation area:
100(m2)
Weight:
360(kg)
Structure:
Vertical
Shape:
Pipe type
Exercise condition:
Internal loop type
Operating pressure:
Atmospheric pressure
Supply Ability
Supply Ability:
181108 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The display cabinet evaporators are packaged in the following way: carton box + wooden box + foam box.
Production and delivery of the display cabinet evaporators are scheduled within 15 days of receipt of the advance payment.
Port
Qingdao or Tianjin
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(day) 26 To be negotiated
Video Description
Product & Materials

frost-free refrigerator evaporator

 frost-free refrigerator evaporator

frost-free refrigerator evaporator

This is Copper tube aluminum fin frost-free refrigerator evaporator and its materials.

              Copper tube

          Hydrophilic foil

        Other materials

Products model
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
